sigar获取机器部分负载信息方法及问题解决

小半 • • 技术随笔 • 阅读 177

导读：本篇文章讲解 sigar获取机器部分负载信息方法及问题解决，希望对大家有帮助，欢迎收藏，转发！站点地址：www.bmabk.com

在这里插入图片描述

文章目录

一、获取负载信息部分：

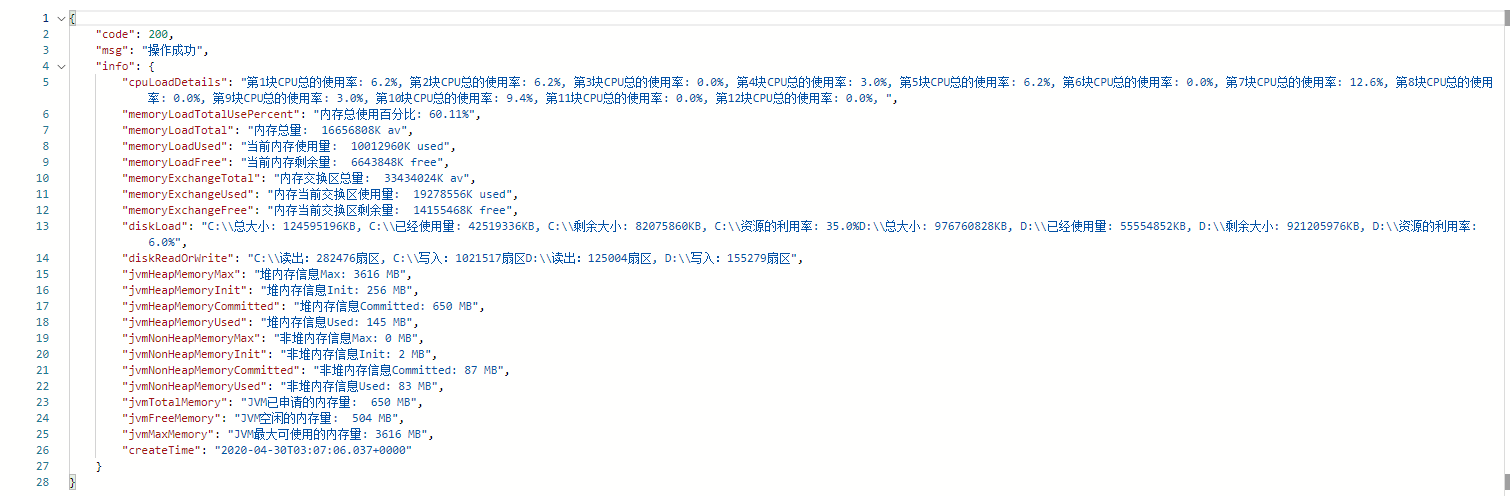

结果部分数据展示：

在这里插入图片描述
⭐
详情请看点这里↓

相关代码如下：

pojo

import java.util.Date;

import com.geespace.microservices.calculate.execute.engine.bean.ModelField;

import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.ToString;

/**
 * ResourInformation
 *
 * @Author: liudz
 * @Date: 2019-11-07
 **/
@Data
@EqualsAndHashCode(callSuper = false)
@ToString(callSuper = true)
public class MachineResourceInfo {

    /**
     * cpuLoadDetails
     */
    @ModelField(name = "CPU负载详情信息", comment = "CPU负载详情信息", size = "500", required = false)
    String cpuLoadDetails;
    /**
     * memoryLoadTotalUsePercent
     */
    @ModelField(name = "内存总使用百分比", comment = "内存总使用百分比", size = "500", required = false)
    String memoryLoadTotalUsePercent;
    /**
     * memoryLoadTotal
     */
    @ModelField(name = "内存总量", comment = "内存总量", size = "500", required = false)
    String memoryLoadTotal;
    /**
     * memoryLoadUsed
     */
    @ModelField(name = "当前内存使用量", comment = "当前内存使用量", size = "500", required = false)
    String memoryLoadUsed;
    /**
     * memoryLoadFree
     */
    @ModelField(name = "当前内存剩余量", comment = "当前内存剩余量", size = "500", required = false)
    String memoryLoadFree;
    /**
     * memoryExchangeTotal
     */
    @ModelField(name = "内存交换区总量", comment = "内存交换区总量", size = "500", required = false)
    String memoryExchangeTotal;
    /**
     * memoryExchangeUsed
     */
    @ModelField(name = "内存当前交换区使用量", comment = "内存当前交换区使用量", size = "500", required = false)
    String memoryExchangeUsed;
    /**
     * memoryExchangeFree
     */
    @ModelField(name = "内存当前交换区剩余量", comment = "内存当前交换区剩余量", size = "500", required = false)
    String memoryExchangeFree;
    /**
     * diskLoad
     */
    @ModelField(name = "磁盘使用情况", comment = "磁盘使用情况", size = "500", required = false)
    String diskLoad;
    /**
     * diskReadOrWrite
     */
    @ModelField(name = "磁盘读写", comment = "磁盘读写", size = "500", required = false)
    String diskReadOrWrite;
    /**
     * jvmHeapMemoryMax
     */
    @ModelField(name = "JVM堆内存信息Max", comment = "JVM堆内存信息Max", size = "500", required = false)
    String jvmHeapMemoryMax;
    /**
     * jvmHeapMemoryInit
     */
    @ModelField(name = "JVM堆内存信息Init", comment = "JVM堆内存信息Init", size = "500", required = false)
    String jvmHeapMemoryInit;
    /**
     * jvmHeapMemoryCommitted
     */
    @ModelField(name = "JVM堆内存信息Committed", comment = "JVM堆内存信息Committed", size = "500", required = false)
    String jvmHeapMemoryCommitted;
    /**
     * jvmHeapMemoryUsed
     */
    @ModelField(name = "JVM堆内存信息Used", comment = "JVM堆内存信息Used", size = "500", required = false)
    String jvmHeapMemoryUsed;
    /**
     * jvmNonHeapMemoryMax
     */
    @ModelField(name = "JVM非堆内存信息Max", comment = "JVM非堆内存信息Max", size = "500", required = false)
    String jvmNonHeapMemoryMax;
    /**
     * jvmNonHeapMemoryInit
     */
    @ModelField(name = "JVM非堆内存信息Init", comment = "JVM非堆内存信息Init", size = "500", required = false)
    String jvmNonHeapMemoryInit;
    /**
     * jvmNonHeapMemoryCommitted
     */
    @ModelField(name = "JVM非堆内存信息Committed", comment = "JVM非堆内存信息Committed", size = "500", required = false)
    String jvmNonHeapMemoryCommitted;
    /**
     * jvmNonHeapMemoryUsed
     */
    @ModelField(name = "JVM非堆内存信息Used", comment = "JVM非堆内存信息Used", size = "500", required = false)
    String jvmNonHeapMemoryUsed;
    /**
     * jvmTotalMemory
     */
    @ModelField(name = "JVM已申请的内存量", comment = "JVM已申请的内存量", size = "500", required = false)
    String jvmTotalMemory;
    /**
     * jvmFreeMemory
     */
    @ModelField(name = "JVM空闲的内存量", comment = "JVM空闲的内存量", size = "500", required = false)
    String jvmFreeMemory;
    /**
     * jvmMaxMemory
     */
    @ModelField(name = "JVM最大可使用的内存量", comment = "JVM最大可使用的内存量", size = "500", required = false)
    String jvmMaxMemory;
    /**
     * 数据产生时间
     */
    private Date createTime;
}

接口

/**
     * 获取机器资源信息
     *
     * @return MachineResourInformation 结果
     * @author: liudz
     * @date: 2020/4/25 16:45
     */
    MachineResourceInfo getMachineResourceInfo();

接口实现类

/**
     * 向ES写机器负载信息，并返回给前端
     *
     * @return
     * @author: liudz
     * @date: 2020/4/25 16:53
     */
    @Override
    public MachineResourceInfo getMachineResourceInfo() {
        MachineResourceInfo machineResourInfo = null;
        try {
            machineResourInfo = addParameter1();
            MachineResourceInfo finalMachineResourInfo = machineResourInfo;
            esExecutorService.submit(() -> {
                JSONObject params = (JSONObject) JSONObject.toJSON(finalMachineResourInfo);
                ResponseEntity<JSONObject> response = HttpUtils.sendPostRequest(monitorUrl, params);
                if (!response.getStatusCode().equals(HttpStatus.CREATED)) {
                    log.error("spark write ES error:{}", response);
                }
            });
        } catch (SigarException e) {
            log.error("AccessEsLogServiceImpl--getMachineResourInfo--error!");
        }
        return machineResourInfo;
    }

/**
     * addParameter
     *
     * @return 结果
     * @throws SigarException
     *             SigarException
     * @author: liudz
     * @date: 16:52
     */
    public MachineResourceInfo addParameter1() throws SigarException {
        MachineResourceInfo machineResourceInfo = new MachineResourceInfo();
        Sigar sigar = new Sigar();
        CpuInfo[] infos = sigar.getCpuInfoList();
        CpuPerc[] cpuList = null;
        cpuList = sigar.getCpuPercList();
        String cpuLoadDetailsUsed = "";
        for (int i = 0; i < infos.length; i++) {
            cpuLoadDetailsUsed += "第" + (i + 1) + "块CPU总的使用率: " + CpuPerc.format(cpuList[i].getCombined()) + ", ";
        }
        Mem mem = sigar.getMem();
        DecimalFormat df = new DecimalFormat("0.00");
        Swap swap = sigar.getSwap();
        FileSystem[] fslist = sigar.getFileSystemList();
        String diskLoad = "";
        String diskReadOrWrite = "";
        for (int i = 0; i < fslist.length; i++) {
            FileSystem fs = fslist[i];
            FileSystemUsage usage = null;
            usage = sigar.getFileSystemUsage(fs.getDirName());
            double usePercent = usage.getUsePercent() * Double.parseDouble("100D");
            diskLoad += fs.getDevName() + "总大小: " + usage.getTotal() + "KB, " + fs.getDevName() + "已经使用量: "
                + usage.getUsed() + "KB, " + fs.getDevName() + "剩余大小: " + usage.getFree() + "KB, " + fs.getDevName()
                + "资源的利用率: " + usePercent + "%";
            diskReadOrWrite += fs.getDevName() + "读出：" + usage.getDiskReads() + "扇区, " + fs.getDevName() + "写入："
                + usage.getDiskWrites() + "扇区";
        }
        machineResourceInfo = addParameter2(df, mem, swap, diskLoad, diskReadOrWrite);
        machineResourceInfo.setCpuLoadDetails(cpuLoadDetailsUsed);
        return machineResourceInfo;
    }

/**
     * addParameter2
     *
     * @param df
     *            df
     * @param mem
     *            mem
     * @param swap
     *            swap
     * @param diskLoad
     *            diskLoad
     * @param diskReadOrWrite
     *            diskReadOrWrite
     * @return machineResourceInfo
     * @author: liudz
     * @date: 2020/4/27 10:27
     */
    public MachineResourceInfo addParameter2(DecimalFormat df, Mem mem, Swap swap, String diskLoad,
        String diskReadOrWrite) {
        MemoryMXBean memorymbean = ManagementFactory.getMemoryMXBean();
        MachineResourceInfo machineResourceInfo = new MachineResourceInfo();
        machineResourceInfo.setCreateTime(new Date());
        machineResourceInfo.setMemoryLoadTotalUsePercent(
            "内存总使用百分比: " + df.format((float) mem.getUsed() / mem.getTotal() * Integer.parseInt("100")) + "%");
        machineResourceInfo.setMemoryLoadTotal("内存总量:  " + mem.getTotal() / Integer.parseInt("1024") + "K av");

        machineResourceInfo.setMemoryLoadUsed("当前内存使用量:  " + mem.getUsed() / Integer.parseInt("1024") + "K used");
        machineResourceInfo.setMemoryLoadFree("当前内存剩余量:  " + mem.getFree() / Integer.parseInt("1024") + "K free");
        machineResourceInfo.setMemoryExchangeTotal("内存交换区总量:  " + swap.getTotal() / Integer.parseInt("1024") + "K av");
        machineResourceInfo
            .setMemoryExchangeUsed("内存当前交换区使用量:  " + swap.getUsed() / Integer.parseInt("1024") + "K used");
        machineResourceInfo
            .setMemoryExchangeFree("内存当前交换区剩余量:  " + swap.getFree() / Integer.parseInt("1024") + "K free");
        machineResourceInfo.setDiskLoad(diskLoad);
        machineResourceInfo.setDiskReadOrWrite(diskReadOrWrite);
        machineResourceInfo.setJvmHeapMemoryMax("堆内存信息Max: "
            + memorymbean.getHeapMemoryUsage().getMax() / Integer.parseInt("1024") / Integer.parseInt("1024") + " MB");
        machineResourceInfo.setJvmHeapMemoryInit("堆内存信息Init: "
            + memorymbean.getHeapMemoryUsage().getInit() / Integer.parseInt("1024") / Integer.parseInt("1024") + " MB");
        machineResourceInfo.setJvmHeapMemoryCommitted("堆内存信息Committed: "
            + memorymbean.getHeapMemoryUsage().getCommitted() / Integer.parseInt("1024") / Integer.parseInt("1024")
            + " MB");
        machineResourceInfo.setJvmHeapMemoryUsed("堆内存信息Used: "
            + memorymbean.getHeapMemoryUsage().getUsed() / Integer.parseInt("1024") / Integer.parseInt("1024") + " MB");
        machineResourceInfo.setJvmNonHeapMemoryMax("非堆内存信息Max: "
            + memorymbean.getNonHeapMemoryUsage().getMax() / Integer.parseInt("1024") / Integer.parseInt("1024")
            + " MB");
        machineResourceInfo.setJvmNonHeapMemoryInit("非堆内存信息Init: "
            + memorymbean.getNonHeapMemoryUsage().getInit() / Integer.parseInt("1024") / Integer.parseInt("1024")
            + " MB");
        machineResourceInfo.setJvmNonHeapMemoryCommitted("非堆内存信息Committed: "
            + memorymbean.getNonHeapMemoryUsage().getCommitted() / Integer.parseInt("1024") / Integer.parseInt("1024")
            + " MB");
        machineResourceInfo.setJvmNonHeapMemoryUsed("非堆内存信息Used: "
            + memorymbean.getNonHeapMemoryUsage().getUsed() / Integer.parseInt("1024") / Integer.parseInt("1024")
            + " MB");
        machineResourceInfo.setJvmTotalMemory("JVM已申请的内存量:  "
            + Runtime.getRuntime().totalMemory() / Integer.parseInt("1024") / Integer.parseInt("1024") + " MB");
        machineResourceInfo.setJvmFreeMemory("JVM空闲的内存量:  "
            + Runtime.getRuntime().freeMemory() / Integer.parseInt("1024") / Integer.parseInt("1024") + " MB");
        machineResourceInfo.setJvmMaxMemory("JVM最大可使用的内存量: "
            + Runtime.getRuntime().maxMemory() / Integer.parseInt("1024") / Integer.parseInt("1024") + " MB");
        return machineResourceInfo;
    }

二、使用问题解答

第一种问题：在华为云ARM部署报错：
org.hyperic.sigar.SigarException: no libsigar-aarch64-linux.so in java.libra

解决办法：遇到华为ARM服务器时，需要libsigar-aarch64-linux.so库支持aarch64平台，把“libsigar-aarch64-linux.so”放在linux下的 /usr/lib 和 /usr/lib64 下（都要进行拷贝）
该朋友已经具体介绍，详情点击这里

第二种问题：使用该类常常会遇到问题：

java.lang.UnsatisfiedLinkError: org.hyperic.sigar.SysInfo.gather(Lorg/hyperic/sigar/Sigar;)V
org.hyperic.sigar.SysInfo.gather(Native Method)
org.hyperic.sigar.OperatingSystem.getInstance(OperatingSystem.java:90)
com.shuhaiserver.page.servlet.LoginServlet.doLogin(LoginServlet.java:146)
com.shuhaiserver.page.servlet.LoginServlet.doPost(LoginServlet.java:54)
javax.servlet.http.HttpServlet.service(HttpServlet.java:637)
javax.servlet.http.HttpServlet.service(HttpServlet.java:717)
com.shuhaiserver.page.servlet.MyFilter.doFilter(MyFilter.java:82)

解决办法：
第一种办法：此时，需要将libsigar-amd64-linux.so、libsigar-x86-linux.so、sigar-amd64-winnt.dll、sigar-x86-winnt.dll、sigar-x86-winnt.lib文件放在项目的lib文件夹下
第二种办法：将上面的5个文件放在linux下的 /usr/lib 和 /usr/lib64 下（都要进行拷贝） —–使用场景是linux下启动springboot的jar包 以命令： java -jar xx.jar 运行才会这么做

补充：至于有的水友说的放在tomcat目录或者其他目录，因为我没碰到，需要你们自己测试

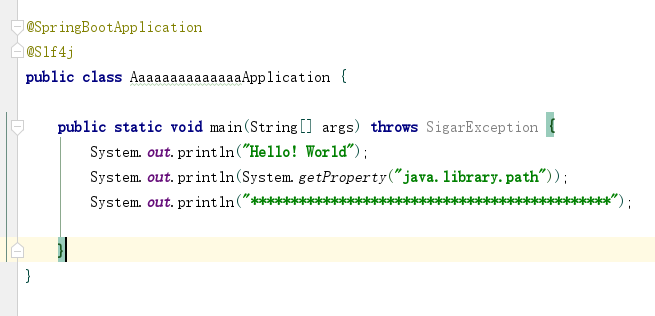

还有的朋友说放在java.library.path库下面，我感觉我的/usr/lib或/usr/lib64应该就是这个，具体是不是我不清楚（另外，查看linux下的java.library.path可新建springboot项目，在Application下新建一行打印输出，并打包在linux下以命令 java -jar xx.jar运行即可显示，帖图如下）

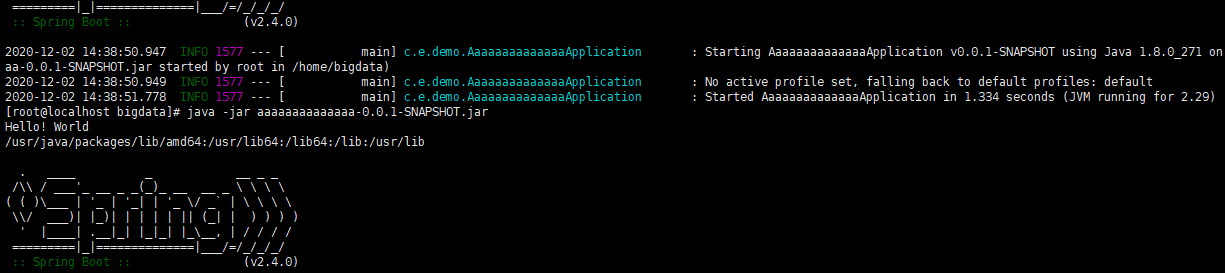

在这里插入图片描述
在这里插入图片描述

三、需要的文件可在我的博客资源下免费下载
