1 概述

(1) Http协议是无状态的,浏览器和服务器间的请求响应一次,下ー次会重新创建连接。
(2) 要求:实现基于 websockete的长连接的全双工的交互。
(3) 改变Http协议多次请求的约束,实现长连接了,服务器可以发送消息给浏览器。
(4) 客户端浏览器和服务器端会相互感知,比如服务器关闭了,浏览器会感知,同样浏览器关闭了,服务器会感知。

2 实现

2.1 WebSocketServerConsts

public final class WebSocketServerConsts {

    private WebSocketServerConsts() {

    }


    public static final Integer port = 8888;

}

2.2 WebSocketHandler

public class WebSocketHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {
        System.out.println("服务器接收到消息：" + msg.text());
        //回复消息
        ctx.channel().writeAndFlush(new TextWebSocketFrame("服务器时间" + LocalDateTime.now() + " " + msg.text()));
    }


    /**
     * 客户端连接后
     */
    @Override
    public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
        System.out.println("handlerAdded 被调用" + ctx.channel().id().asLongText());
        System.out.println("handlerAdded 被调用" + ctx.channel().id().asShortText());
    }

    /**
     *客户端断开连接时触发
     */
    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        System.out.println("handlerRemoved 被调用" + ctx.channel().id().asLongText());
    }


    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        System.out.println("发生异常" + cause.getMessage());
        ctx.channel();
    }
}

2.3 WebSocketServerChannelInitializer

public class WebSocketServerChannelInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {

        ChannelPipeline pipeline = ch.pipeline();

        //http 编码、解码器
        pipeline.addLast(new HttpServerCodec());
        //以块的方式写
        pipeline.addLast(new ChunkedWriteHandler());
        //http数据在传输过程中是分段的，HttpObjectAggregator可以将多个段聚合
        pipeline.addLast(new HttpObjectAggregator(8192));
        //websocketServerProtocolHandler，将http协议升级为ws协议，浏览器请求时uri为 ws://localhost:8888/hello
        pipeline.addLast(new WebSocketServerProtocolHandler("/hello"));
        //自定义handler
        pipeline.addLast(new WebSocketHandler());
    }
}

2.4 WebSocketServer

public class WebSocketServer {


    public static void main(String[] args) {

        EventLoopGroup bossGroup = new NioEventLoopGroup(1);
        EventLoopGroup workerGroup = new NioEventLoopGroup();

        try {

            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new WebSocketServerChannelInitializer());

            ChannelFuture channelFuture = serverBootstrap.bind(WebSocketServerConsts.port).sync();

            System.out.println("服务器已经开启......");
            channelFuture.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }

    }


}

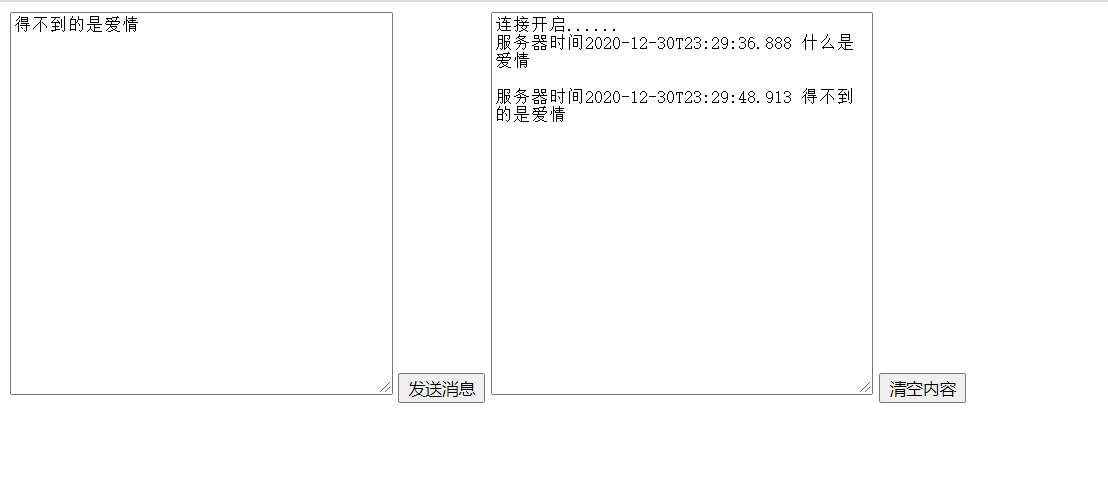

2.5 hello.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>WebSocket</title>
</head>
<body>

<form onsubmit="return false">

    <textarea name="message" style="height: 300px;width: 300px;"></textarea>
    <input type="button" value="发送消息" onclick="send(this.form.message.value)">
    <textarea id="responseText" name="responseText" style="height: 300px;width: 300px;"></textarea>
    <input type="button" value="清空内容" onclick="document.getElementById('responseText').value=''">

</form>


<script>

    var socket;
    if (window.WebSocket) {

        socket = new WebSocket("ws://localhost:8888/hello");
        //接收服务器消息
        socket.onmessage = function (ev) {
            var rt = document.getElementById("responseText");
            rt.value = rt.value + "\n" + ev.data;
        }

        //连接开启
        socket.onopen = function (ev) {
            var rt = document.getElementById("responseText");
            rt.value = "连接开启......";

        }

        //连接关闭
        socket.onclose = function (ev) {
            var rt = document.getElementById("responseText");
            rt.value = rt.value + "\n" + "连接关闭了......";
        }

    } else {
        alert("当前浏览器不支持websocket");
    }


    //发送消息
    function send(message) {

        if (!window.WebSocket) {
            return;
        }

        if (socket.readyState == WebSocket.OPEN) {
            socket.send(message);
        } else {
            alert("连接没有开启");
        }
    }

</script>


</body>
</html>
