SpringAop学习笔记（三）——Aop源码分析

入口

@EnableAspectJAutoProxy 这个注解是aop的入口，开启aop

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {
。。。。}

AspectJAutoProxyRegistrar.class

class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {
    AspectJAutoProxyRegistrar() {
    }

    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

//注册AnnotationAwareAspectJAutoProxyCreator.class到IOC容器
 AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
//获取@EnableAspectJAutoProxy注解
        AnnotationAttributes enableAspectJAutoProxy = AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
        if (enableAspectJAutoProxy != null) {
            if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
                AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
            }

            if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
                AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
            }
        }

    }
}

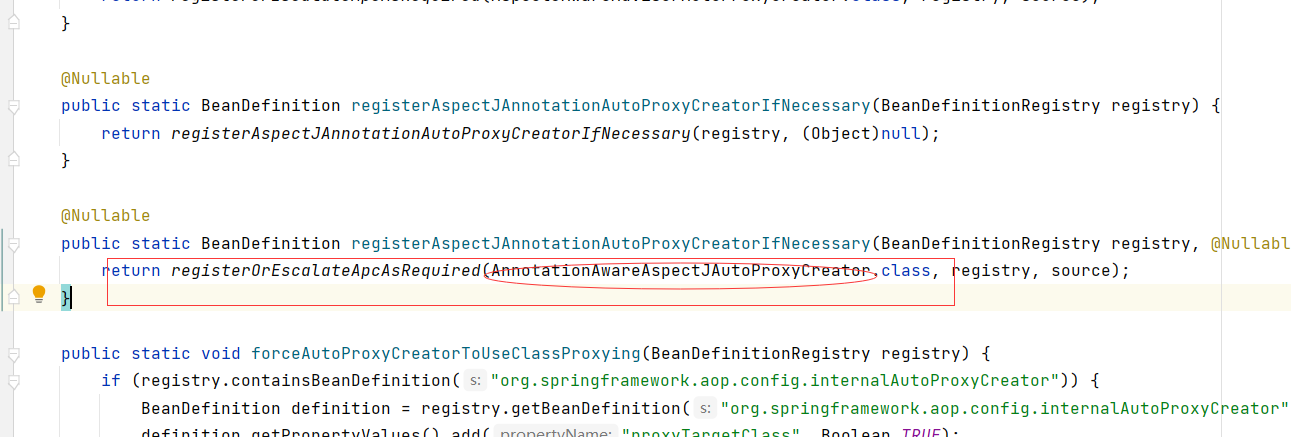

 进入注册方法

AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);

注册的方法

    private static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {
        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
        if (registry.containsBeanDefinition("org.springframework.aop.config.internalAutoProxyCreator")) {
            BeanDefinition apcDefinition = registry.getBeanDefinition("org.springframework.aop.config.internalAutoProxyCreator");
            if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
                int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
                int requiredPriority = findPriorityForClass(cls);
                if (currentPriority < requiredPriority) {
                    apcDefinition.setBeanClassName(cls.getName());
                }
            }

            return null;
        } else {
            RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
            beanDefinition.setSource(source);
            beanDefinition.getPropertyValues().add("order", -2147483648);
            beanDefinition.setRole(2);
            registry.registerBeanDefinition("org.springframework.aop.config.internalAutoProxyCreator", beanDefinition);
            return beanDefinition;
        }
    }

 注册结果是：将下面这个类注入到IOC

beanId:org.springframework.aop.config.internalAutoProxyCreator
Class： AnnotationAwareAspectJAutoProxyCreator.class

再回过头看这个类AnnotationAwareAspectJAutoProxyCreator.class

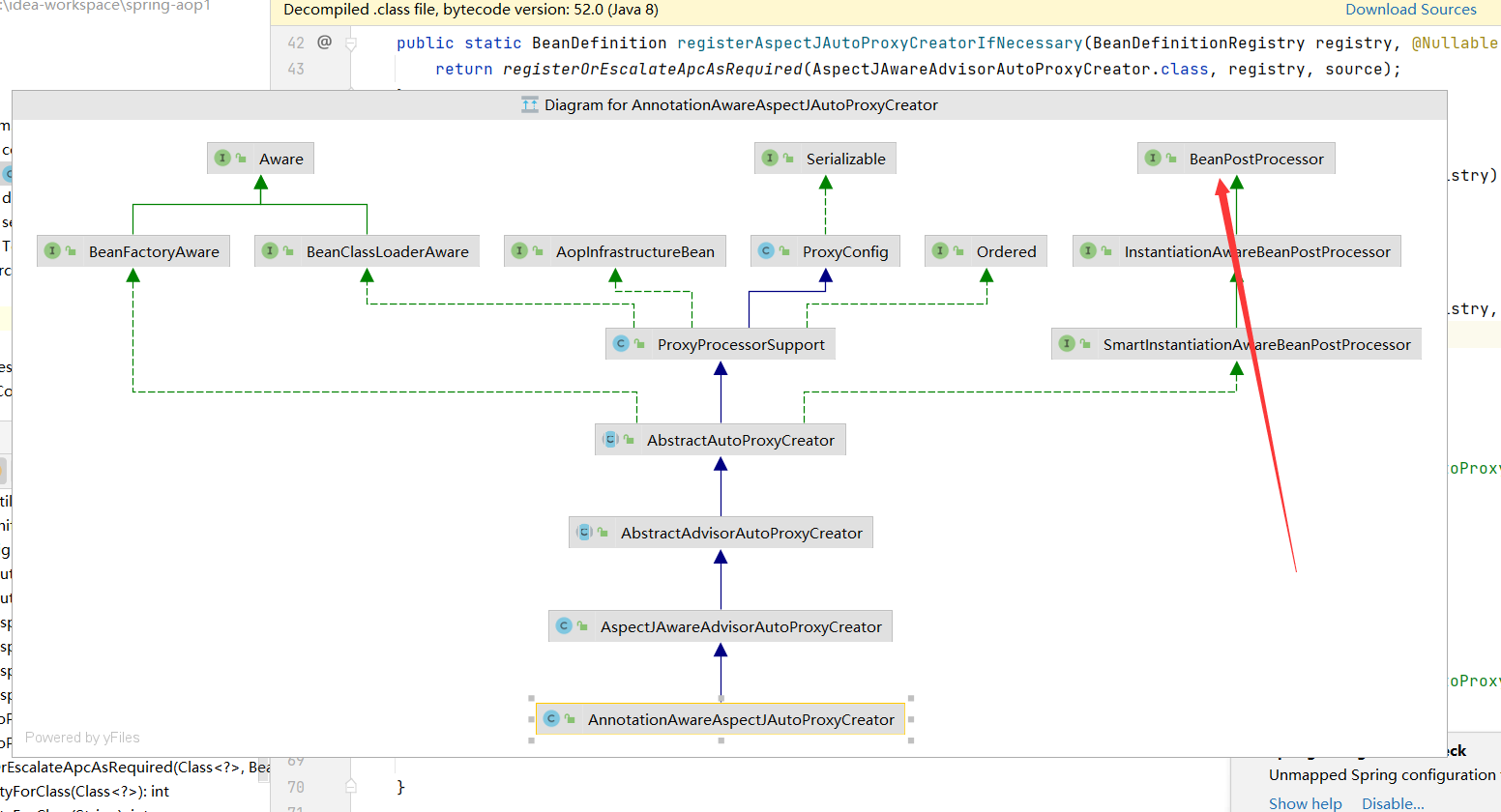

由类图分析

 可知，这个类实现BeanPostProcessor 接口

public interface BeanPostProcessor {
    @Nullable
    default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
        return bean;
    }

    @Nullable
    default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        return bean;
    }
}

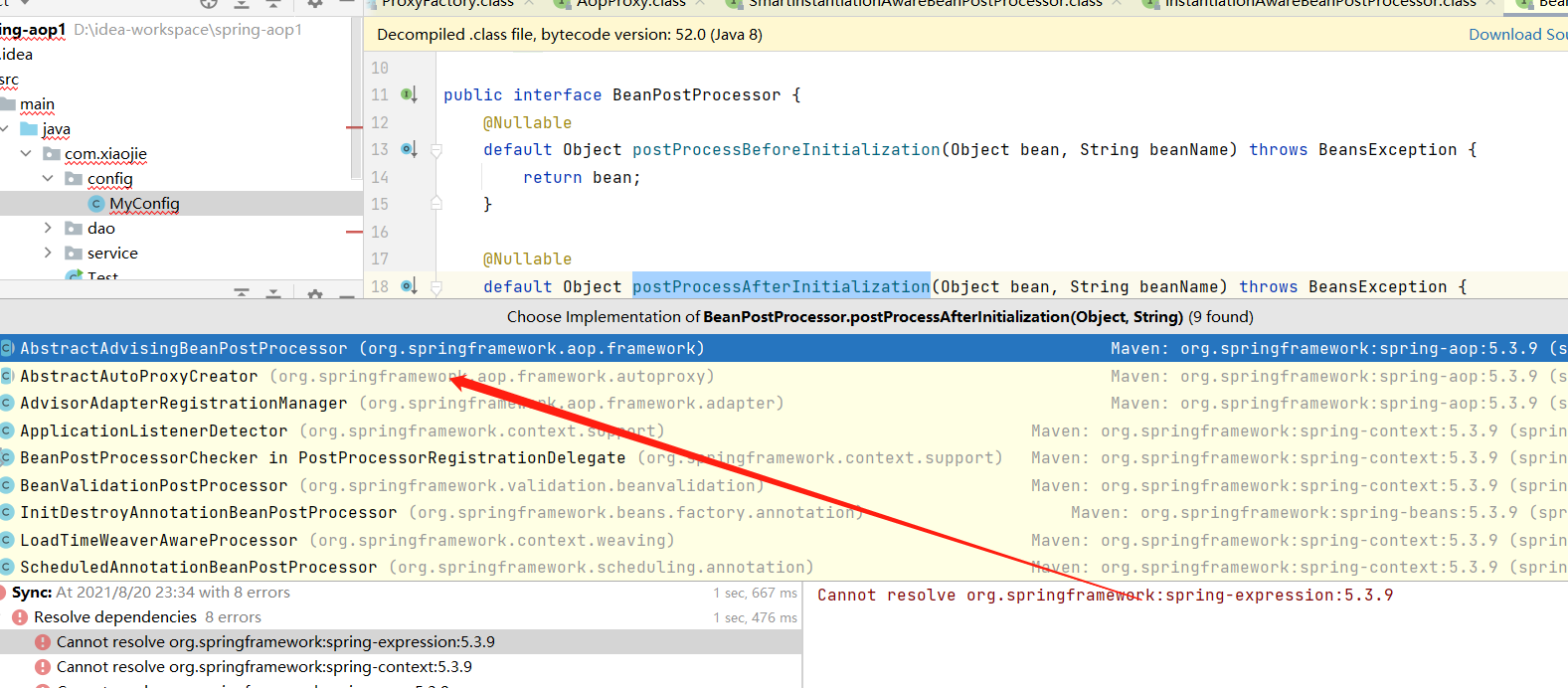

然后我们分开别查看这两个方法的实现

 进入这个方法

public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
        if (bean != null) {
            Object cacheKey = this.getCacheKey(bean.getClass(), beanName);
            if (this.earlyProxyReferences.remove(cacheKey) != bean) {
                //继续深入
                return this.wrapIfNecessary(bean, beanName, cacheKey);
            }
        }

        return bean;
    }

继续深入

   protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
        if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
            return bean;
        } else if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
            //没有增强不用代理直接返回
            return bean;
        } else if (!this.isInfrastructureClass(bean.getClass()) && !this.shouldSkip(bean.getClass(), beanName)) {
            //获取通知
            Object[] specificInterceptors = this.getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, (TargetSource)null);
            if (specificInterceptors != DO_NOT_PROXY) {
                //判断是否需要代理（是否有通知），需要的话给一个true的标志
                this.advisedBeans.put(cacheKey, Boolean.TRUE);
                //进行代理，继续深入
                Object proxy = this.createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
                this.proxyTypes.put(cacheKey, proxy.getClass());
                return proxy;
            } else {
                this.advisedBeans.put(cacheKey, Boolean.FALSE);
                return bean;
            }
        } else {
            //不需要设置false标志
            this.advisedBeans.put(cacheKey, Boolean.FALSE);
            return bean;
        }
    }

继续深入

protected Object createProxy(Class<?> beanClass, @Nullable String beanName, @Nullable Object[] specificInterceptors, TargetSource targetSource) {
        if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
            AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory)this.beanFactory, beanName, beanClass);
        }

        ProxyFactory proxyFactory = new ProxyFactory();
        proxyFactory.copyFrom(this);
        if (!proxyFactory.isProxyTargetClass()) {
            if (this.shouldProxyTargetClass(beanClass, beanName)) {
                proxyFactory.setProxyTargetClass(true);
            } else {
                this.evaluateProxyInterfaces(beanClass, proxyFactory);
            }
        }

        Advisor[] advisors = this.buildAdvisors(beanName, specificInterceptors);
        proxyFactory.addAdvisors(advisors);
        proxyFactory.setTargetSource(targetSource);
        this.customizeProxyFactory(proxyFactory);
        proxyFactory.setFrozen(this.freezeProxy);
        if (this.advisorsPreFiltered()) {
            proxyFactory.setPreFiltered(true);
        }
        //继续深入 GO! GO!GO!
        return proxyFactory.getProxy(this.getProxyClassLoader());
    }

最后进入这个方法

 public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
        if (NativeDetector.inNativeImage() || !config.isOptimize() && !config.isProxyTargetClass() && !this.hasNoUserSuppliedProxyInterfaces(config)) {
            return new JdkDynamicAopProxy(config);
        } else {
            Class<?> targetClass = config.getTargetClass();
            if (targetClass == null) {
                throw new AopConfigException("TargetSource cannot determine target class: Either an interface or a target is required for proxy creation.");
            } else {
                //如果代理的是接口就JDK代理，如果不是接口就CGLIB代理
                //jdk动态代理只能代理接口，cglib代理是基于继承实现的，所以被代理的类不行用final修饰
                return (AopProxy)(!targetClass.isInterface() && !Proxy.isProxyClass(targetClass) ? new ObjenesisCglibAopProxy(config) : new JdkDynamicAopProxy(config));
            }
        }
    }

最后就是执行invoke()方法。

本Spring版本为5.3.9
