学习目标
- Dubbo的注册流程
- Dubbo的暴露流程
第1章 注册流程
先贴出注册发布总流程图
1.1 流程描述
当需要发布一个服务的时候就需要把该服务的信息注册到注册中心中，具体来说就是需要把用于消费者调用的协议注册到注册中心中。以zookeeper为例，当provider启动的时候就会往zookeeper的providers节点下面写入dubbo协议，具体是以接口粒度作为服务发布的基准。比如要发布一个com.example.service.UserService服务，则会往/dubbo/com.example.service.UserService/providers下面写入dubbo协议，协议内容如下：
dubbo%3A%2F%2F192.168.8.32%3A20990%2Fcom.example.service.UserService%3Fanyhost%3Dtrue%26application%3Ddubbo_provider%26deprecated%3Dfalse%26dubbo%3D2.0.2%26dynamic%3Dtrue%26generic%3Dfalse%26interface%3Dcom.example.service.UserService%26metadata-type%3Dremote%26methods%3DdoKill%2CqueryUser%26pid%3D10760%26release%3D3.0.2.1%26retries%3D4%26revision%3D1.0-SNAPSHOT%26service-name-mapping%3Dtrue%26side%3Dprovider%26threadpool%3Dfixed%26threads%3D100%26timeout%3D5000%26timestamp%3D16345377623621.2 源码分析
1.2.1 源码入口
当spring容器启动完成后，会发布事件，由DubboBootstrapApplicationListener捕获到事件来触发服务的发布流程。
public synchronized DubboBootstrap start() {
// avoid re-entry start method multiple times in same thread
if (isCurrentlyInStart){
return this;
}
isCurrentlyInStart = true;
try {
if (started.compareAndSet(false, true)) {
startup.set(false);
shutdown.set(false);
awaited.set(false);
initialize();
if (logger.isInfoEnabled()) {
logger.info(NAME + " is starting...");
}
//触发发布服务流程
doStart();
if (logger.isInfoEnabled()) {
logger.info(NAME + " has started.");
}
} else {
if (logger.isInfoEnabled()) {
logger.info(NAME + " is started, export/refer new services.");
}
doStart();
if (logger.isInfoEnabled()) {
logger.info(NAME + " finish export/refer new services.");
}
}
return this;
} finally {
isCurrentlyInStart = false;
}
}private void doStart() {
// 1. export Dubbo Services
//服务发布暴露
exportServices();
// If register consumer instance or has exported services
if (isRegisterConsumerInstance() || hasExportedServices()) {
// 2. export MetadataService
exportMetadataService();
// 3. Register the local ServiceInstance if required
registerServiceInstance();
}
referServices();
// wait async export / refer finish if needed
awaitFinish();
if (isExportBackground() || isReferBackground()) {
new Thread(() -> {
while (!asyncExportFinish || !asyncReferFinish) {
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
logger.error(NAME + " waiting async export / refer occurred and error.", e);
}
}
onStarted();
}).start();
} else {
onStarted();
}
}private void exportServices() {
for (ServiceConfigBase sc : configManager.getServices()) {
// TODO, compatible with ServiceConfig.export()
ServiceConfig<?> serviceConfig = (ServiceConfig<?>) sc;
serviceConfig.setBootstrap(this);
if (!serviceConfig.isRefreshed()) {
serviceConfig.refresh();
}
if (sc.isExported()) {
continue;
}
if (sc.shouldExportAsync()) {
ExecutorService executor = executorRepository.getServiceExportExecutor();
CompletableFuture<Void> future = CompletableFuture.runAsync(() -> {
try {
if (!sc.isExported()) {
sc.export();
exportedServices.add(sc);
}
} catch (Throwable t) {
logger.error("export async catch error : " + t.getMessage(), t);
}
}, executor);
asyncExportingFutures.add(future);
} else {
if (!sc.isExported()) {
//服务暴露，会掉到ServiceConfig的export方法
sc.export();
exportedServices.add(sc);
}
}
}
}//由dubbo事件监听类调到该方法 DubboBootstrapApplicationListener
@Override
public synchronized void export() {
if (this.shouldExport() && !this.exported) {
this.init();
// check bootstrap state
if (!bootstrap.isInitialized()) {
throw new IllegalStateException("DubboBootstrap is not initialized");
}
if (!this.isRefreshed()) {
this.refresh();
}
if (!shouldExport()) {
return;
}
if (shouldDelay()) {
DELAY_EXPORT_EXECUTOR.schedule(this::doExport, getDelay(),TimeUnit.MILLISECONDS);
} else {
//服务暴露核心代码
doExport();
}
if (this.bootstrap.getTakeoverMode() == BootstrapTakeoverMode.AUTO) {
this.bootstrap.start();
}
}
}protected synchronized void doExport() {
if (unexported) {
throw new IllegalStateException("The service " + interfaceClass.getName() + " has already unexported!");
}
if (exported) {
return;
}
if (StringUtils.isEmpty(path)) {
path = interfaceName;
}
//服务暴露的核心代码，重点看
doExportUrls();
exported();
}private void doExportUrls() {
//服务仓库
ServiceRepository repository = ApplicationModel.getServiceRepository();
//把服务注册到本地的服务仓库中
ServiceDescriptor serviceDescriptor = repository.registerService(getInterfaceClass());
repository.registerProvider(
getUniqueServiceName(),
ref,
serviceDescriptor,
this,
serviceMetadata
);
//获取需要注册的协议，这里会获取到两种协议
//1、service-discovery-registry 注册到本地内存
//2、registry 注册到注册中心
List<URL> registryURLs = ConfigValidationUtils.loadRegistries(this, true);
for (ProtocolConfig protocolConfig : protocols) {
String pathKey = URL.buildKey(getContextPath(protocolConfig)
.map(p -> p + "/" + path)
.orElse(path), group, version);
// In case user specified path, register service one more time to map it to path.
repository.registerService(pathKey, interfaceClass);
//核心代码
doExportUrlsFor1Protocol(protocolConfig, registryURLs);
}
}//这里会循环两种协议头对应的协议
private URL exportRemote(URL url, List<URL> registryURLs) {
if (CollectionUtils.isNotEmpty(registryURLs)) {
for (URL registryURL : registryURLs) {
if (SERVICE_REGISTRY_PROTOCOL.equals(registryURL.getProtocol())) {
url = url.addParameterIfAbsent(SERVICE_NAME_MAPPING_KEY, "true");
}
//if protocol is only injvm ,not register
if (LOCAL_PROTOCOL.equalsIgnoreCase(url.getProtocol())) {
continue;
}
url = url.addParameterIfAbsent(DYNAMIC_KEY,registryURL.getParameter(DYNAMIC_KEY));
URL monitorUrl = ConfigValidationUtils.loadMonitor(this, registryURL);
if (monitorUrl != null) {
url = url.putAttribute(MONITOR_KEY, monitorUrl);
}
// For providers, this is used to enable custom proxy to generate invoker
String proxy = url.getParameter(PROXY_KEY);
if (StringUtils.isNotEmpty(proxy)) {
registryURL = registryURL.addParameter(PROXY_KEY, proxy);
}
if (logger.isInfoEnabled()) {
if (url.getParameter(REGISTER_KEY, true)) {
logger.info("Register dubbo service " + interfaceClass.getName() + " url " + url.getServiceKey() + " to registry " + registryURL.getAddress());
} else {
logger.info("Export dubbo service " + interfaceClass.getName() + " to url " + url.getServiceKey());
}
}
//核心代码
doExportUrl(registryURL.putAttribute(EXPORT_KEY, url), true);
}
} else {
if (MetadataService.class.getName().equals(url.getServiceInterface())) {
MetadataUtils.saveMetadataURL(url);
}
if (logger.isInfoEnabled()) {
logger.info("Export dubbo service " + interfaceClass.getName() + " to url " + url);
}
doExportUrl(url, true);
}
return url;

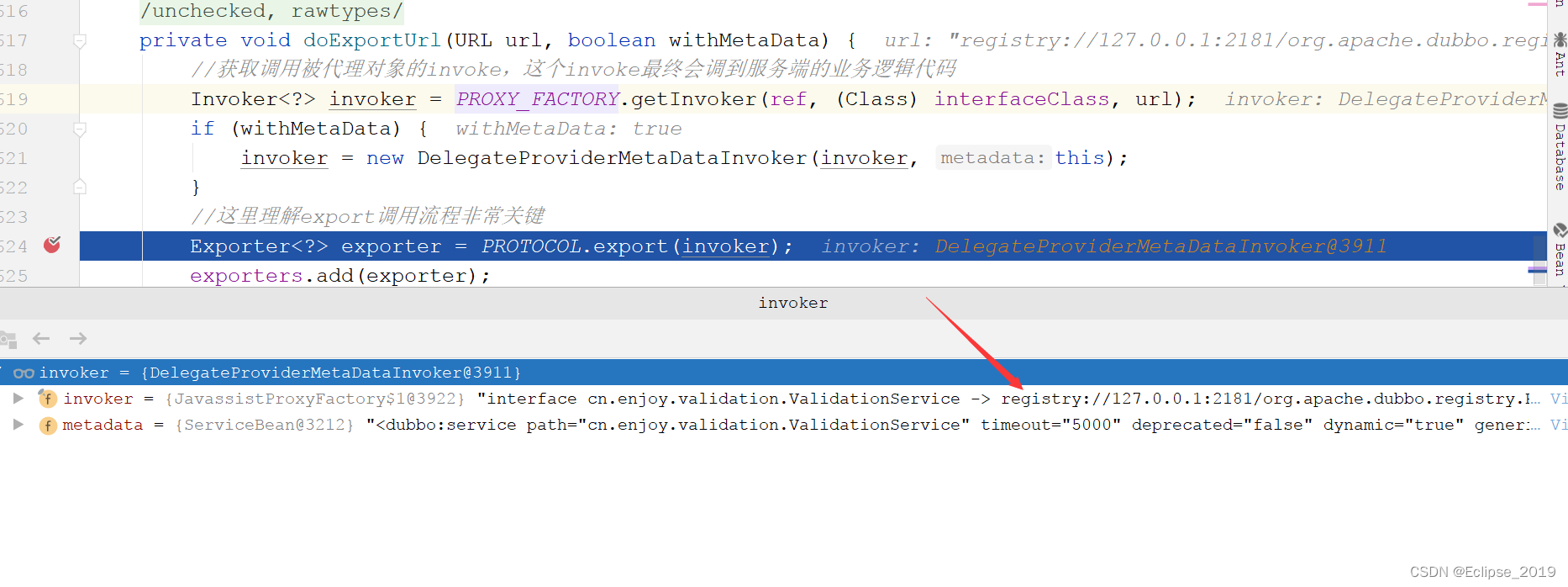

}流程最终走到这个如下图所示方法，该方法有两个逻辑，一个是获取到一个最终能调到被代理对象的invoker对象，一个是用Protocol对象进行export方法的调用进行了服务的发布。
private void doExportUrl(URL url, boolean withMetaData) {
//获取调用被代理对象的invoke，这个invoke最终会调到服务端的业务逻辑代码
Invoker<?> invoker = PROXY_FACTORY.getInvoker(ref, (Class) interfaceClass, url);
if (withMetaData) {
invoker = new DelegateProviderMetaDataInvoker(invoker, this);
}
//这里理解export调用流程非常关键
Exporter<?> exporter = PROTOCOL.export(invoker);
exporters.add(exporter);
}我们来分析获取invoker的逻辑。Invoker<?> invoker = PROXY_FACTORY.getInvoker(ref, (Class) interfaceClass,url);
根据spi的规则，该方法最终会走到JavassistProxyFactory类对应的getInvoker方法中，如下：
@Override
public <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) {
// TODO Wrapper cannot handle this scenario correctly: the classname contains '$'
//这个是用javassist技术动态生成的对象，这个是能调到被代理对象的代理对象
final Wrapper wrapper = Wrapper.getWrapper(proxy.getClass().getName().indexOf('$') < 0 ? proxy.getClass() : type);
return new AbstractProxyInvoker<T>(proxy, type, url) {
//该方法在服务调用过程中会被掉到，最终会掉被代理方法
@Override
protected Object doInvoke(T proxy, String methodName,
Class<?>[] parameterTypes,
Object[] arguments) throws Throwable {
//给wrapper代理对象传入，被代理对象的实例，方法名称，参数类型，参数就可以调到被代理方法
return wrapper.invokeMethod(proxy, methodName, parameterTypes, arguments);
}
};
}下面我来重点的分析一下export方法对应的大流程
Exporter<?> exporter = PROTOCOL.export(invoker);
该方法包括了服务的注册和服务的启动两个流程。
1.2.2 registry协议
代码走到export方法时，对应的协议头是registry协议头，根据SPI的规则，最终会走到Protocol接口对应的代理类中，然后getExtension方法会获取到包装类对象，最后的包装类会持有RegistryProtocol对象的引用。
1、包装类的流转
- QosProtocolWrapper，如果协议头是registry则开启qos服务，用于做命令方式的服务治理。
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { //如果是Registry://xx 的协议，则开启qos服务 if (UrlUtils.isRegistry(invoker.getUrl())) { startQosServer(invoker.getUrl()); return protocol.export(invoker); } //如果是类似于 dubbo://xx 协议 return protocol.export(invoker); } - ProtocolSerializationWrapper
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { ApplicationModel.getServiceRepository().registerProviderUrl(invoker.getUrl()); return protocol.export(invoker); } -
ProtocolFilterWrapper
registry协议头没做特殊处理
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { if (UrlUtils.isRegistry(invoker.getUrl())) { return protocol.export(invoker); } //创建FilterChainNode的链条结构，其实就是一个过滤器链 return protocol.export(builder.buildInvokerChain(invoker, SERVICE_FILTER_KEY, CommonConstants.PROVIDER)); } -
ProtocolListenerWrapper
registry协议头没做特殊处理
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { if (UrlUtils.isRegistry(invoker.getUrl())) { return protocol.export(invoker); } //这是一种扩展机制，比如服务暴露后做某些事情 return new ListenerExporterWrapper<T> protocol.export(invoker), Collections.unmodifiableList(ExtensionLoader.getExtensionLoader(ExporterListener.class).getActivateExtension(invoker.getUrl(), EXPORTER_LISTENER_KEY))); }
2、InterfaceCompatibleRegistryProtocol
通过包装类的流转后，最终代码会走到InterfaceCompatibleRegistryProtocol中，该类是RegistryProtocol的一个子类。
@Override
public <T> Exporter<T> export(final Invoker<T> originInvoker) throws RpcException {
//获取注册协议 zookeeper://xx 根据registry协议头获取的
//registry --> zookeeper://
//service-discovery-registry --> service-discovery-registry
URL registryUrl = getRegistryUrl(originInvoker);
//获取注册到注册中心的dubbo协议
// url to export locally
URL providerUrl = getProviderUrl(originInvoker);
// Subscribe the override data
// FIXME When the provider subscribes, it will affect the scene : a certain JVM exposes the service and call
// the same service. Because the subscribed is cached key with the name of the service, it causes the
// subscription information to cover.
//以下逻辑是对configurators节点注册事件监听，如果修改了属性则会覆盖客户端的该节点的数据
final URL overrideSubscribeUrl = getSubscribedOverrideUrl(providerUrl);
//zookeeper事件触发后，最终回调的listener
final OverrideListener overrideSubscribeListener = new OverrideListener(overrideSubscribeUrl, originInvoker);
overrideListeners.put(overrideSubscribeUrl, overrideSubscribeListener);
//添加override协议，添加事件监听
providerUrl = overrideUrlWithConfig(providerUrl, overrideSubscribeListener);
//export invoker
//服务暴露和启动核心代码
final ExporterChangeableWrapper<T> exporter = doLocalExport(originInvoker,providerUrl);
//获取注册逻辑的实现类
// url to registry
final Registry registry = getRegistry(registryUrl);
final URL registeredProviderUrl = getUrlToRegistry(providerUrl, registryUrl);
// decide if we need to delay publish
boolean register = providerUrl.getParameter(REGISTER_KEY, true);
if (register) {
//把协议注册到中间件中，比如往zookeeper写节点
register(registry, registeredProviderUrl);
}
// register stated url on provider model
registerStatedUrl(registryUrl, registeredProviderUrl, register);
exporter.setRegisterUrl(registeredProviderUrl);
exporter.setSubscribeUrl(overrideSubscribeUrl);
//注册事件 ,,可以不看，已经过时
// Deprecated! Subscribe to override rules in 2.6.x or before.
registry.subscribe(overrideSubscribeUrl, overrideSubscribeListener);
notifyExport(exporter);
//Ensure that a new exporter instance is returned every time export
return new DestroyableExporter<>(exporter);
}最终在register(registry, registeredProviderUrl);里面完成了把dubbo协议写到zookeeper里面的逻辑。
@Override
public void doRegister(URL url) {
try {
zkClient.create(toUrlPath(url), url.getParameter(DYNAMIC_KEY, true));
} catch (Throwable e) {
throw new RpcException("Failed to register " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
}
}可以看到registry协议最终是把dubbo协议注册到了zookeeper中了。
1.2.3 service-discovery-registry协议
该协议最终会把内容注册到本地
1、包装类的流转
该协议的包装类流程跟registry协议的包装类流程是一样的，这里就不再赘述。
2、RegistryProtocol
该协议最终的注册类是RegistryProtocol，这里跟registry协议有点不一样。
该类的逻辑跟registry协议对应的逻辑就不一样了，不一样的点如下：
- URL registryUrl = getRegistryUrl(originInvoker)；根据service-discovery-registry协议头获取到的registryUrl为：
service-discovery-registry://127.0.0.1:2181/org.apache.dubbo.registry.RegistryService? application=dubbo_provider&dubbo=2.0.2&pid=12216®istry=zookeeper&release=3.0.2.1×tamp=163 4543382033 - 注册实现类变了
-

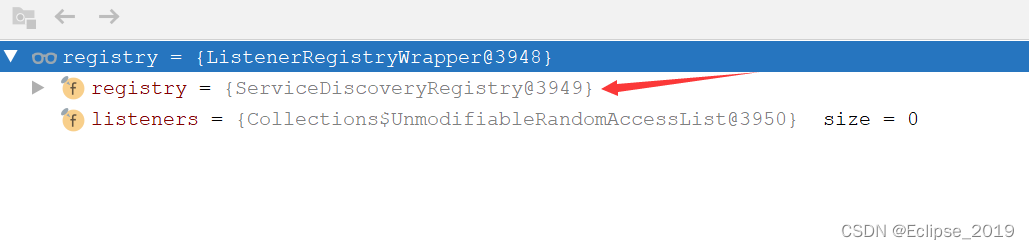

注册的形式变了
最终把内容注册到了本地了，具体的路径如下：
在ServiceDiscoveryRegistry类中完成了该功能：
public void doRegister(URL url) { url = addRegistryClusterKey(url); if (writableMetadataService.exportURL(url)) { if (logger.isInfoEnabled()) { logger.info(format("The URL[%s] registered successfully.", url.toString())); } } else { if (logger.isWarnEnabled()) { logger.warn(format("The URL[%s] has been registered.", url.toString())); } } }InMemoryWritableMetadataService
@Override public boolean exportURL(URL url) { if (MetadataService.class.getName().equals(url.getServiceInterface())) { this.metadataServiceURL = url; return true; } updateLock.readLock().lock(); try { String[] clusters = getRegistryCluster(url).split(","); for (String cluster : clusters) { MetadataInfo metadataInfo = metadataInfos.computeIfAbsent(cluster, k -> new MetadataInfo(ApplicationModel.getName())); metadataInfo.addService(new ServiceInfo(url)); } metadataSemaphore.release(); return addURL(exportedServiceURLs, url); } finally { updateLock.readLock().unlock(); } }

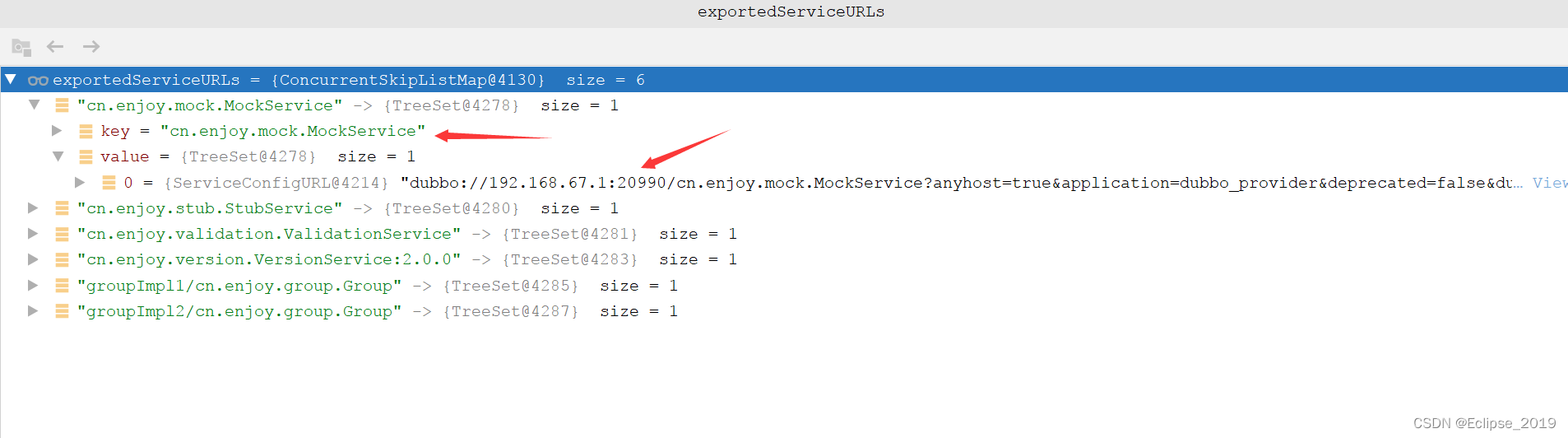

可以看到在exportedServiceURLs中建立了接口和协议的映射关系，在jvm本地。
1.3 总结
从上面描述可以看出，服务的注册分为两部分
1、registry协议对应的注册
2、service-discovery-registry协议对应的注册
前者是把dubbo协议的信息注册到zookeeper等注册中心，后者是服务的自省机制，是应用级别的服务发现，会把dubbo协议内容注册到本地，并且把应用的ip和端口信息存储到services节点下面。
第2章 发布流程
2.1 流程描述
服务的发布流程其实是在registry协议的时候触发的，在RegistryProtocol中的export中的
//服务暴露核心代码
final ExporterChangeableWrapper<T> exporter = doLocalExport(originInvoker, providerUrl);2.2 源码分析
originInvoker是之前我们提到的能调到被代理类的invoker对象，里面的url是dubbo协议，是dubbo协议头。
private <T> ExporterChangeableWrapper<T> doLocalExport(final Invoker<T> originInvoker, URL providerUrl) {
String key = getCacheKey(originInvoker);
return (ExporterChangeableWrapper<T>) bounds.computeIfAbsent(key, s -> {
Invoker<?> invokerDelegate = new InvokerDelegate<>(originInvoker, providerUrl);
//这里对应的协议头就是dubbo了，最后会掉到DubboProtocol
return new ExporterChangeableWrapper<>((Exporter<T>)
protocol.export(invokerDelegate), originInvoker);
});
}2.2.1 dubbo协议
protocol.export(invokerDelegate)，这里的协议头是dubbo，那么根据spi的规则同样的是会走到包装类的逻辑。
1、包装类的流转
- QosProtocolWrapper
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { //如果是Registry://xx 的协议，则开启qos服务 if (UrlUtils.isRegistry(invoker.getUrl())) { startQosServer(invoker.getUrl()); return protocol.export(invoker); } //如果是类似于 dubbo://xx 协议 return protocol.export(invoker); } - ProtocolSerializationWrapper
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { ApplicationModel.getServiceRepository().registerProviderUrl(invoker.getUrl()); return protocol.export(invoker); } - ProtocolFilterWrapper
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { if (UrlUtils.isRegistry(invoker.getUrl())) { return protocol.export(invoker); } //创建FilterChainNode的链条结构，其实就是一个过滤器链 return protocol.export(builder.buildInvokerChain(invoker, SERVICE_FILTER_KEY, CommonConstants.PROVIDER)); }这里由于协议头是dubbo，所以会建立一条过滤器的链组成一个调用链。
@Override public <T> Invoker<T> buildInvokerChain(final Invoker<T> originalInvoker, String key,String group) { Invoker<T> last = originalInvoker; //spi，获取生产者的所有过滤器的实例 List<Filter> filters = ExtensionLoader.getExtensionLoader(Filter.class).getActivateExtension(originalInvoker.getUrl(), key, group); if (!filters.isEmpty()) { for (int i = filters.size() - 1; i >= 0; i--) { final Filter filter = filters.get(i); final Invoker<T> next = last; last = new FilterChainNode<>(originalInvoker, next, filter); } } return last; }FilterChainNode中有指向下一个FilterChainNode的指针和filter对象。
- ProtocolListenerWrapper
@Override public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException { if (UrlUtils.isRegistry(invoker.getUrl())) { return protocol.export(invoker); } //这是一种扩展机制，比如服务暴露后做某些事情 return new ListenerExporterWrapper<T>(protocol.export(invoker),Collections.unmodifiableList(ExtensionLoader.getExtensionLoader(ExporterListener.class).getActivateExtension(invoker.getUrl(), EXPORTER_LISTENER_KEY))); }这里提供给用户这种扩展的机会，如果希望在服务发布完成后进行通知，可以实现ExporterListener接口，然后在该接口对应的META-INF目录下按照spi的规则创建文件。
2、DubboProtocol
最终代码会走到DubboProtocol中来完成服务的启动和调用链的建立。
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
URL url = invoker.getUrl();
// export service.
String key = serviceKey(url);
DubboExporter<T> exporter = new DubboExporter<T>(invoker, key, exporterMap);
exporterMap.put(key, exporter);
//export an stub service for dispatching event
Boolean isStubSupportEvent = url.getParameter(STUB_EVENT_KEY, DEFAULT_STUB_EVENT);
Boolean isCallbackservice = url.getParameter(IS_CALLBACK_SERVICE, false);
if (isStubSupportEvent && !isCallbackservice) {
String stubServiceMethods = url.getParameter(STUB_EVENT_METHODS_KEY);
if (stubServiceMethods == null || stubServiceMethods.length() == 0) {
if (logger.isWarnEnabled()) {
logger.warn(new IllegalStateException("consumer [" + url.getParameter(INTERFACE_KEY) + "], has set stubproxy support event ,but no stub methods founded."));
}
}
}
//核心代码，开启服务
openServer(url);
optimizeSerialization(url);
return exporter;
}private void openServer(URL url) {
// find server.
String key = url.getAddress();
//client can export a service which's only for server to invoke
boolean isServer = url.getParameter(IS_SERVER_KEY, true);
if (isServer) {
ProtocolServer server = serverMap.get(key);
if (server == null) {
synchronized (this) {
server = serverMap.get(key);
if (server == null) {
//在这里开启了netty服务端
serverMap.put(key, createServer(url));
}else {
server.reset(url);
}
}
} else {
// server supports reset, use together with override
server.reset(url);
}
}
}private ProtocolServer createServer(URL url) {
url = URLBuilder.from(url)
// send readonly event when server closes, it's enabled by default
.addParameterIfAbsent(CHANNEL_READONLYEVENT_SENT_KEY, Boolean.TRUE.toString())
// enable heartbeat by default
.addParameterIfAbsent(HEARTBEAT_KEY, String.valueOf(DEFAULT_HEARTBEAT))
.addParameter(CODEC_KEY, DubboCodec.NAME)
.build();
String str = url.getParameter(SERVER_KEY, DEFAULT_REMOTING_SERVER);
if (str != null && str.length() > 0 && !ExtensionLoader.getExtensionLoader(Transporter.class).hasExtension(str)) {
throw new RpcException("Unsupported server type: " + str + ", url: " + url);
}
ExchangeServer server;
try {
//核心代码 ，开启server，建立调用链路
server = Exchangers.bind(url, requestHandler);
} catch (RemotingException e) {
throw new RpcException("Fail to start server(url: " + url + ") " + e.getMessage(),e);
}
str = url.getParameter(CLIENT_KEY);
if (str != null && str.length() > 0) {
Set<String> supportedTypes =
ExtensionLoader.getExtensionLoader(Transporter.class).getSupportedExtensions();
if (!supportedTypes.contains(str)) {
throw new RpcException("Unsupported client type: " + str);
}
}
return new DubboProtocolServer(server);
}//可以看到之类的handler类是一层层的包裹关系
@Override
public ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException {
return new HeaderExchangeServer(Transporters.bind(url, new DecodeHandler(new HeaderExchangeHandler(handler))));
}在nettyServer中又进行了一次handler的包装。
public NettyServer(URL url, ChannelHandler handler) throws RemotingException {
// you can customize name and type of client thread pool by THREAD_NAME_KEY and THREADPOOL_KEY in CommonConstants.
// the handler will be wrapped: MultiMessageHandler->HeartbeatHandler->handler
//开启netty服务端，对handler再一次包装
super(ExecutorUtil.setThreadName(url, SERVER_THREAD_POOL_NAME),ChannelHandlers.wrap(handler, url));
}protected ChannelHandler wrapInternal(ChannelHandler handler, URL url) {
return new MultiMessageHandler(new HeartbeatHandler(ExtensionLoader.getExtensionLoader(Dispatcher.class).getAdaptiveExtension().dispatch(handler, url)));
}最终的handler关系如下；
MultiMessageHandler->HeartbeatHandler->AllChannelHandler->DecodeHandler->HeaderExchangeHandler->DubboProtocol.reply()->N个FilterChainNode->JavassistProxyFactory.AbstractProxyInvoker.invoke()->wrapper.invokeMethod->目标实现类的方法
然后在NettyServer的构造函数中开启了netty服务端
public AbstractServer(URL url, ChannelHandler handler) throws RemotingException {
super(url, handler);
localAddress = getUrl().toInetSocketAddress();
String bindIp = getUrl().getParameter(Constants.BIND_IP_KEY, getUrl().getHost());
int bindPort = getUrl().getParameter(Constants.BIND_PORT_KEY, getUrl().getPort());
if (url.getParameter(ANYHOST_KEY, false) || NetUtils.isInvalidLocalHost(bindIp)) {
bindIp = ANYHOST_VALUE;
}
bindAddress = new InetSocketAddress(bindIp, bindPort);
this.accepts = url.getParameter(ACCEPTS_KEY, DEFAULT_ACCEPTS);
try {
//开启netty服务端，并建立调用链路
doOpen();
if (logger.isInfoEnabled()) {
logger.info("Start " + getClass().getSimpleName() + " bind " + getBindAddress() + ", export " + getLocalAddress());
}
} catch (Throwable t) {
throw new RemotingException(url.toInetSocketAddress(), null, "Failed to bind " + getClass().getSimpleName() + " on " + getLocalAddress() + ", cause: " + t.getMessage(), t);
}
executor = executorRepository.createExecutorIfAbsent(url);
}@Override
protected void doOpen() throws Throwable {
bootstrap = new ServerBootstrap();
bossGroup = NettyEventLoopFactory.eventLoopGroup(1, "NettyServerBoss");
workerGroup = NettyEventLoopFactory.eventLoopGroup(getUrl().getPositiveParameter(IO_THREADS_KEY,Constants.DEFAULT_IO_THREADS),"NettyServerWorker");
//核心的handler，用来处理请求
final NettyServerHandler nettyServerHandler = new NettyServerHandler(getUrl(), this);
channels = nettyServerHandler.getChannels();
boolean keepalive = getUrl().getParameter(KEEP_ALIVE_KEY, Boolean.FALSE);
bootstrap.group(bossGroup, workerGroup)
.channel(NettyEventLoopFactory.serverSocketChannelClass())
.option(ChannelOption.SO_REUSEADDR, Boolean.TRUE)
.childOption(ChannelOption.TCP_NODELAY, Boolean.TRUE)
.childOption(ChannelOption.SO_KEEPALIVE, keepalive)
.childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
// FIXME: should we use getTimeout()?
int idleTimeout = UrlUtils.getIdleTimeout(getUrl());
//getCodec()中就是真正的序列化工具
NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(),NettyServer.this);
if (getUrl().getParameter(SSL_ENABLED_KEY, false)) {
ch.pipeline().addLast("negotiation", new SslServerTlsHandler(getUrl()));
}
ch.pipeline()
.addLast("decoder", adapter.getDecoder())
.addLast("encoder", adapter.getEncoder())
.addLast("server-idle-handler", new IdleStateHandler(0, 0,idleTimeout, MILLISECONDS))
.addLast("handler", nettyServerHandler);
}
});
// bind
ChannelFuture channelFuture = bootstrap.bind(getBindAddress());
channelFuture.syncUninterruptibly();
channel = channelFuture.channel();
}在核心handler NettyServerHandler中持有了上述链式handler对象的引用，又NettyServerHandler来处理用户的请求，然后由NettyServerHandler转到链式handler对象中，一层层的处理用户的请求，每一层的handler作用都不一样，比如由编解码的，有心跳的等待。
2.3 总结
服务的启动流程其实就是开启了一个netty的服务端，然后建立了调用链，这个调用链是有N个handler对象组成的，每一个handler对象都是负责整个调用过程的某个功能环节，编解码，心跳等等。
版权声明：本文内容由互联网用户自发贡献，该文观点仅代表作者本人。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容， 请发送邮件至 举报，一经查实，本站将立刻删除。
文章由极客之音整理，本文链接：https://www.bmabk.com/index.php/post/76702.html
