一、队列

（一）生产者

1.新建Maven工程并设置包名类名

2.Pom.xml

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--spring boot整合activemq的jar包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-activemq</artifactId>
            <version>2.1.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

3.application.yml

server:
  port: 7777 #端口号

spring:
  activemq:
    broker-url: tcp://193.179.123.10:61616
    user: admin
    password: admin
  jms:
    pub-sub-domain: false    #false=queue   true=topic

#自己定义队列名称
myqueue: boot-activemq-queue

4.configBean

// 让spring管理的注解，相当于spring中在xml 中写了个bean
@Component
// 开启jms适配
@EnableJms
public class ConfigBean {

    // 注入配置文件中的 myqueue
    @Value("${myqueue}")
    private String myQueue ;

    @Bean   // bean id=""  class="…"
    public ActiveMQQueue queue(){
        return  new ActiveMQQueue(myQueue);
    }
}

5.Queue_produce

@Component
public class Queue_produce {

    @Autowired
    private JmsMessagingTemplate jmsMessagingTemplate;
    @Autowired
    private Queue queue;

    public void produceMsg() {
        jmsMessagingTemplate.convertAndSend(String.valueOf(queue),"******:"+ UUID.randomUUID().toString().substring(0,6));
    }
}

5.BootMqProduceApplication

@SpringBootApplication
public class BootMqProduceApplication {

    public static void main(String[] args) {
        SpringApplication.run(BootMqProduceApplication.class, args);
    }

}

6.测试类

@SpringBootTest(classes = BootMqProduceApplication.class)
@RunWith(SpringJUnit4ClassRunner.class)
@WebAppConfiguration
public class TestActiveMQ {

    @Autowired
    private Queue_produce produce;

    @Test
    public void testsend() throws Exception{
        produce.produceMsg();
    }
}

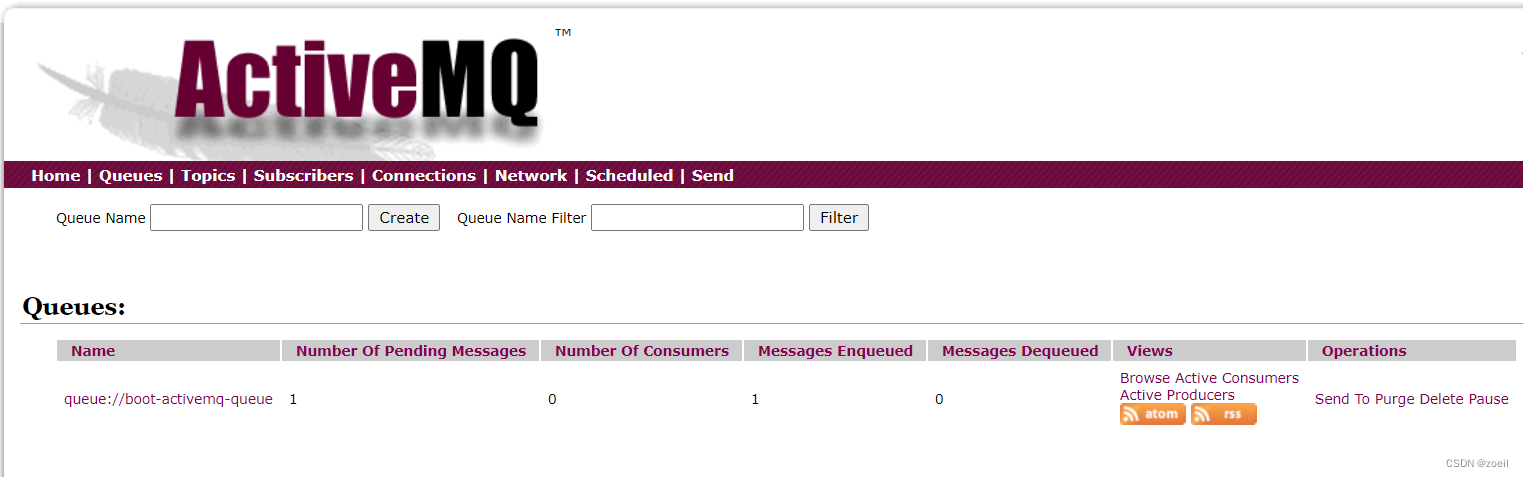

测试结果

7.每隔3秒钟往MQ投递消息

（1）修改Queue_produce

@Component
public class Queue_produce {

    @Autowired
    private JmsMessagingTemplate jmsMessagingTemplate;
    @Autowired
    private Queue queue;

//    public void produceMsg() {
//        jmsMessagingTemplate.convertAndSend(String.valueOf(queue),"******:"+ UUID.randomUUID().toString().substring(0,6));
//    }

    @Scheduled(fixedDelay = 3000L)
    public void produceMsgScheduled() {
        jmsMessagingTemplate.convertAndSend(String.valueOf(queue),"******:"+ UUID.randomUUID().toString().substring(0,6));
    }
}

（2）主启动类增加注解

（3）直接开启主启动类，间隔3秒发消息

注意：这里队列的名字变化为queue://boot-activemq-queue

（二）消费者

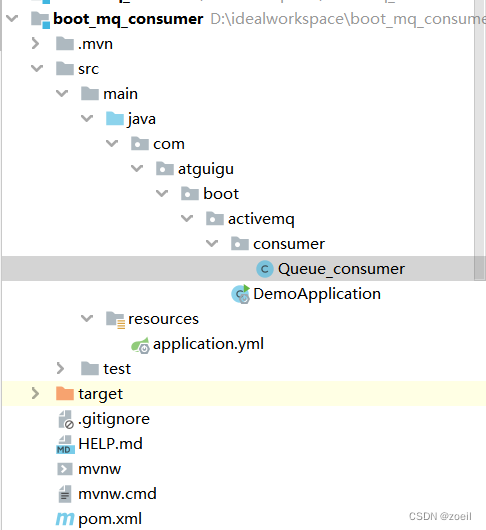

1.新建Maven工程并设置包名类名

2.Pom.xml文件与前面一致

3.application.yml

server:
  port: 8888 #端口号与前面不同，每个微服务有不同的微服务端口号

spring:
  activemq:
    broker-url: tcp://193.179.123.10:61616
    user: admin
    password: admin
  jms:
    pub-sub-domain: false    #false=queue   true=topic

#监听队列的名称
myqueue: queue://boot-activemq-queue

4.Queue_Consumer

@Component
public class Queue_consumer {

    //读取yml文件中的myqueue
    @JmsListener(destination = "${myqueue}")
    public void receive(TextMessage textMessage) throws JMSException {
        System.out.println("***收到消息: "+textMessage.getText());
    }
}

5.运行主启动类

二、发布订阅

（一）Topic生产者

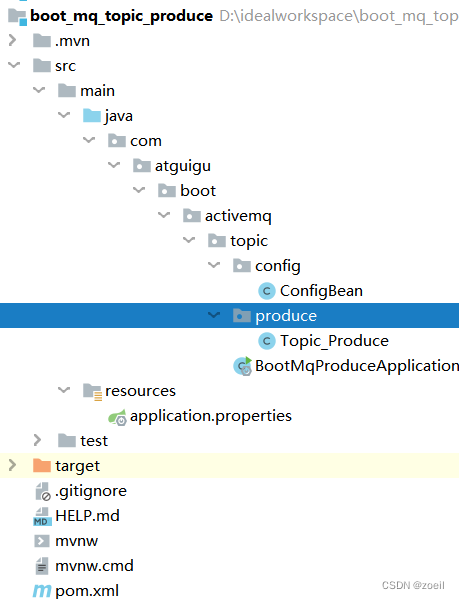

1.新建Maven工程并设置包名类名

2.Pom.xml文件与前面一致

3.application.properties

server.port=6666

spring.activemq.broker-url=tcp://193.179.123.10:61616
spring.activemq.user=admin
spring.activemq.password=admin
spring.jms.pub-sub-domain=true

mytopic=boot-activemq-topic

4.ConfigBean

@Component
@EnableJms
public class ConfigBean {
    @Value("${mytopic}")
    public String mytopicName;

    @Bean
    public ActiveMQTopic topic() {
        return new ActiveMQTopic(mytopicName);
    }
}

5.Topic_Produce

@Component
public class Topic_Produce {
    @Autowired
    private JmsTemplate jmsTemplate;
    @Autowired
    private Topic topic;

    @Scheduled(fixedDelay = 3000)
    public void produceScheduled() {
        jmsTemplate.convertAndSend(topic, "主题消息："+UUID.randomUUID().toString().substring(0,6));
    }
}

6.启动主启动类，每隔3秒发送一条主题

（二）Topic消费者

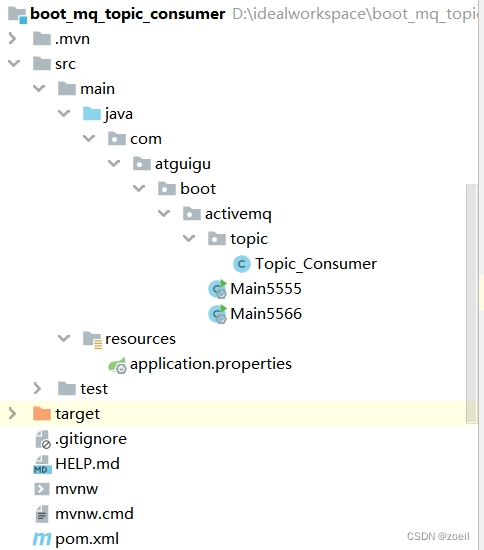

1.新建Maven工程并设置包名类名

2.Pom.xml同上

3.application.properties

#等下改为5566模拟两个用户进行监听
server.port=5566

spring.activemq.broker-url=tcp://193.179.123.10:61616
spring.activemq.user=admin
spring.activemq.password=admin
spring.jms.pub-sub-domain=true

mytopic=boot-activemq-topic

4.Topic_Consumer

@Component
public class Topic_Consumer {

    @JmsListener(destination = "boot-activemq-topic")
    public void receive(TextMessage textMessage) throws JmsException, JMSException {
        System.out.println("监听到主题："+textMessage.getText());
    }
}

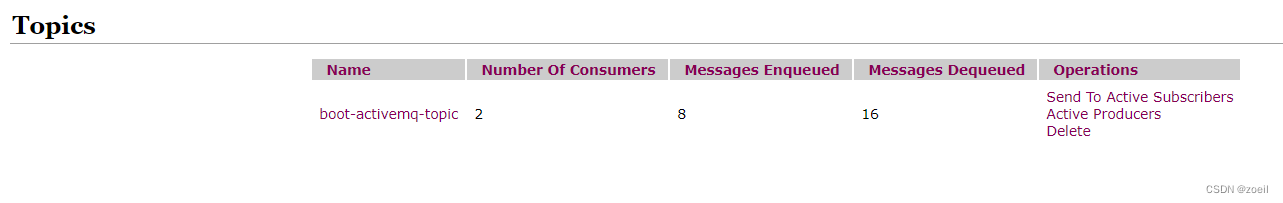

5.模拟两个订阅者主启动类，先启动订阅者再启动消费者

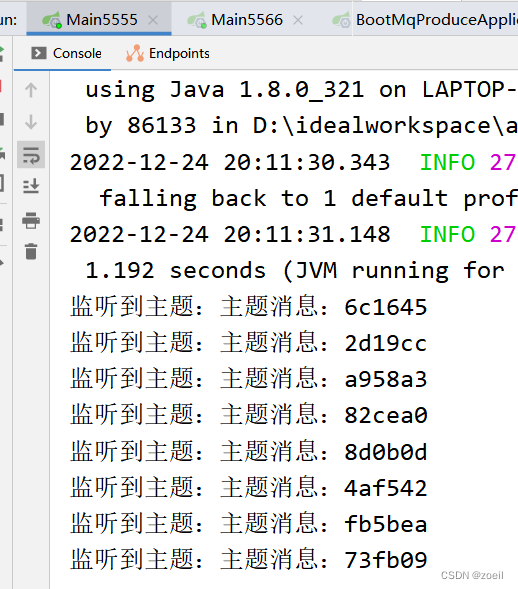

5566订阅者
