Android 图片的放大与缩小、Glide实现图片圆角、圆形、高斯模糊等功能，图片3D倒影显示。

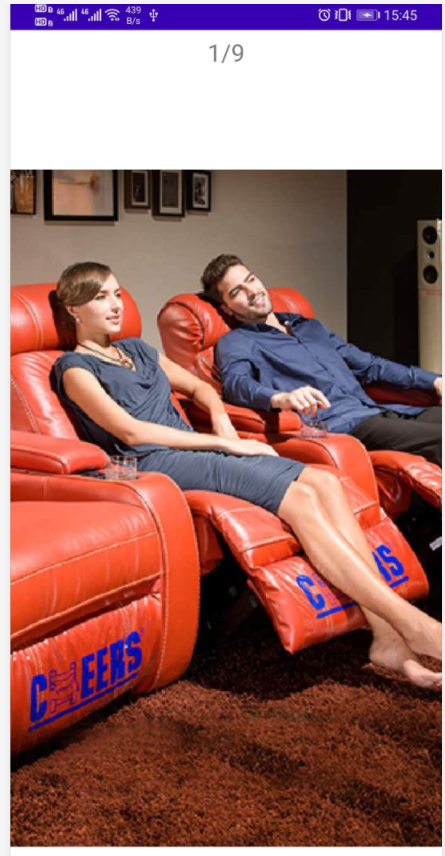

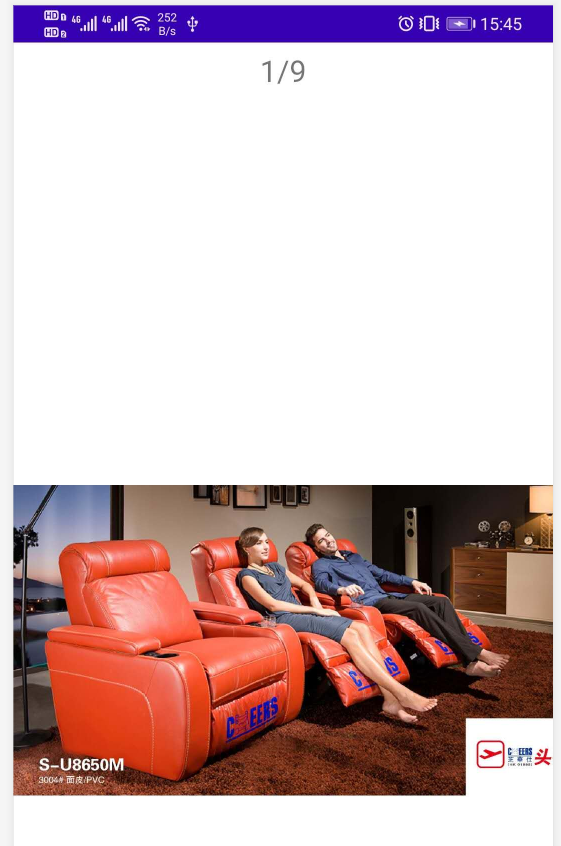

一、图片的放大与缩小

1.图片实现缩放的Activcity

package com.ruidde.csndresourcedemo.enlargenarrow;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.widget.TextView;

import androidx.viewpager.widget.ViewPager;

import com.ruidde.csndresourcedemo.R;

public class FindDetailPhotoActivity extends Activity implements ViewPager.OnPageChangeListener {

   private ViewPager viewpager_individualphoto;
    private TextView tv_content;
    private int[] imgDate = new int[]{};
    private FindDetailPhotoAdapter adapter;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      // TODO Auto-generated method stub
      super.onCreate(savedInstanceState);
      setContentView(R.layout.find_detailphoto);
      findViewById();
      initViewDate();
      setInitView();
   }
   public void setInitView(){

      adapter = new FindDetailPhotoAdapter(this, imgDate);
//    adapter = new FindDetailPhotoAdapter(this);
      viewpager_individualphoto.setAdapter(adapter);
      viewpager_individualphoto.setOnPageChangeListener(this);
   }
   public void initViewDate(){
      Intent intent = getIntent();
      Bundle bundle = new Bundle();
      bundle = intent.getExtras();
      imgDate = bundle.getIntArray("imgDate");
      tv_content.setText(1 + "/" + imgDate.length);
   }
   public void findViewById(){
      tv_content = (TextView) findViewById(R.id.tv_content);
      viewpager_individualphoto = (ViewPager) findViewById(R.id.viewpager_individualphoto);
   }
   @Override
   public void onPageScrollStateChanged(int arg0) {
   }
   @Override
   public void onPageScrolled(int arg0, float arg1, int arg2) {
   }
   @Override
   public void onPageSelected(int position) {
      tv_content.setText((position+1)+"/" + imgDate.length);

   }
}

package com.ruidde.csndresourcedemo.enlargenarrow;

import java.util.List;

import uk.co.senab.photoview.PhotoView;
import android.content.Context;
import android.view.View;
import android.view.ViewGroup;
import android.view.ViewGroup.LayoutParams;

import androidx.viewpager.widget.PagerAdapter;

public class FindDetailPhotoAdapter extends PagerAdapter {
   private int[] urls = new int[]{};
   private Context context;

   public FindDetailPhotoAdapter(Context context,int[] urls) {
      super();
      this.urls = urls;
      this.context = context;
   }

   @Override
   public int getCount() {
      // TODO Auto-generated method stub
      return urls == null ? 0 : urls.length;
   }

   @Override
   public boolean isViewFromObject(View arg0, Object arg1) {
      // TODO Auto-generated method stub
      return arg0 == arg1;
   }

   @Override
   public void destroyItem(ViewGroup container, int position, Object object) {
      container.removeView((View) object);

   }

   @Override
   public Object instantiateItem(ViewGroup container, int position) {

//    container.addView(views.get(position), 0);
//    return views.get(position);
      PhotoView photoView = new PhotoView(container.getContext());
//    String url = Config.PATH + urls.get(position);
//    AWonderBitmap aWonderBitmap=AWonderBitmap.create(container.getContext());
//    aWonderBitmap.display(photoView, url, BitmapFactory.decodeResource(context.getResources(), R.drawable.touxiang_img),
//    BitmapFactory.decodeResource(context.getResources(), R.drawable.touxiang_img));
      container.addView(photoView, LayoutParams.MATCH_PARENT,LayoutParams.MATCH_PARENT);
      photoView.setImageResource(urls[position]);
      return photoView;

   }

   @Override
   public void setPrimaryItem(ViewGroup container, int position, Object object) {
      // TODO Auto-generated method stub
      super.setPrimaryItem(container, position, object);
   }

}

package com.ruidde.csndresourcedemo.enlargenarrow;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;

import com.ruidde.csndresourcedemo.R;

public class ImageViewAdapter extends BaseAdapter {

   private Context context;
   private int[] imgDate = new int[]{};

   public ImageViewAdapter(Context context,int[] imgDate){
      this.context = context;
      this.imgDate = imgDate;
   }

   @Override
   public int getCount() {
      // TODO Auto-generated method stub
      return imgDate.length;
   }

   @Override
   public Object getItem(int position) {
      // TODO Auto-generated method stub
      return imgDate[position];
   }

   @Override
   public long getItemId(int position) {
      // TODO Auto-generated method stub
      return position;
   }

   @Override
   public View getView(int position, View convertView, ViewGroup parent) {
      convertView = LayoutInflater.from(context).inflate(R.layout.img_adapter, null);
      ImageView imgView = (ImageView) convertView.findViewById(R.id.imgview);
      imgView.setImageResource(imgDate[position]);
      return convertView;
   }

}

主Activity

package com.ruidde.csndresourcedemo;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.GridView;

import com.ruidde.csndresourcedemo.enlargenarrow.FindDetailPhotoActivity;
import com.ruidde.csndresourcedemo.enlargenarrow.ImageViewAdapter;

/**
 * 图片的放大与缩小
 * */
public class EnlargeNarrowActivity extends Activity {

    private int[] imgResource = new int[]{R.mipmap.one ,R.mipmap.two ,R.mipmap.three ,R.mipmap.four ,R.mipmap.five ,R.mipmap.six ,
            R.mipmap.seven ,R.mipmap.eight ,R.mipmap.nine};

    private GridView img_gridView;
    private ImageViewAdapter adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_photo_view_demo);
        img_gridView =findViewById(R.id.img_gridView);
        adapter = new ImageViewAdapter(this, imgResource);
        img_gridView.setAdapter(adapter);


        img_gridView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                Intent intent = new Intent(getApplicationContext(), FindDetailPhotoActivity.class);
                Bundle bundle = new Bundle();
                bundle.putIntArray("imgDate", imgResource);
                intent.putExtras(bundle);
                startActivity(intent);
            }
        });

    }
}

放大缩小的类

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <GridView
        android:id="@+id/img_gridView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:numColumns="2"
        android:scrollbars="none"
        android:verticalSpacing="16dip" />

</LinearLayout>

二、使用Glide来实现图片的圆角、圆形、高斯模糊等功能。

1.在build中引入

//图片加载 可实现圆角
implementation 'com.github.bumptech.glide:glide:4.10.0'
//Glide高斯模糊
implementation 'jp.wasabeef:glide-transformations:4.1.0'
//Glide圆角
annotationProcessor 'com.github.bumptech.glide:compiler:4.10.0'

2.创建xml ： activity_circleimage

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <ImageView
        android:id="@+id/imgView"
        android:layout_width="wrap_content"
        android:layout_height="200dp"
        android:scaleType="fitXY"
        android:layout_marginTop="20dp"
        android:layout_gravity="center_horizontal"
        android:src="@mipmap/one"/>

    <ImageView
        android:id="@+id/imgViewCir"
        android:layout_width="200dp"
        android:layout_height="200dp"
        android:scaleType="fitXY"
        android:layout_marginTop="20dp"
        android:layout_gravity="center_horizontal"
        android:src="@mipmap/three"/>

    <ImageView
        android:id="@+id/imgViewRound"
        android:layout_width="200dp"
        android:layout_height="200dp"
        android:scaleType="fitXY"
        android:layout_marginTop="20dp"
        android:layout_gravity="center_horizontal"
        android:src="@mipmap/two"/>

</LinearLayout>
3.实现图圆角的类 ：GlideRoundTransform

package com.ruidde.csndresourcedemo.glide;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.BitmapShader;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.RectF;

import androidx.annotation.NonNull;

import com.bumptech.glide.load.engine.bitmap_recycle.BitmapPool;
import com.bumptech.glide.load.resource.bitmap.BitmapTransformation;

import java.security.MessageDigest;

/**
 * 圆角图
 */
public class GlideRoundTransform extends BitmapTransformation {

    private static float radius = 0f;

    public GlideRoundTransform(Context context) {
        this(context, 4);
    }

    public GlideRoundTransform(Context context, int dp) {
        radius = Resources.getSystem().getDisplayMetrics().density * dp;
    }

    @Override
    protected Bitmap transform(BitmapPool pool, Bitmap toTransform, int outWidth, int outHeight) {
        return roundCrop(pool, toTransform);
    }

    private static Bitmap roundCrop(BitmapPool pool, Bitmap source) {
        if (source == null) return null;

        Bitmap result = pool.get(source.getWidth(), source.getHeight(), Bitmap.Config.ARGB_8888);
        if (result == null) {
            result = Bitmap.createBitmap(source.getWidth(), source.getHeight(), Bitmap.Config.ARGB_8888);
        }

        Canvas canvas = new Canvas(result);
        Paint paint = new Paint();
        paint.setShader(new BitmapShader(source, BitmapShader.TileMode.CLAMP, BitmapShader.TileMode.CLAMP));
        paint.setAntiAlias(true);
        RectF rectF = new RectF(0f, 0f, source.getWidth(), source.getHeight());
        canvas.drawRoundRect(rectF, radius, radius, paint);
        return result;
    }

    public String getId() {
        return getClass().getName() + Math.round(radius);
    }

    @Override
    public void updateDiskCacheKey(@NonNull MessageDigest messageDigest) {

    }
}

4.Activity中使用方法

package com.ruidde.csndresourcedemo;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.widget.ImageView;

import androidx.annotation.Nullable;

import com.bumptech.glide.Glide;
import com.bumptech.glide.load.resource.bitmap.CircleCrop;
import com.bumptech.glide.request.RequestOptions;
import com.ruidde.csndresourcedemo.glide.GlideRoundTransform;

import jp.wasabeef.glide.transformations.BlurTransformation;

import static com.bumptech.glide.request.RequestOptions.bitmapTransform;

/**
 * 在build中添加引用
 * //图片加载 可实现圆角
 * implementation 'com.github.bumptech.glide:glide:4.10.0'
 * //高斯模糊
 * implementation 'jp.wasabeef:glide-transformations:4.1.0'
 * 实现图片圆角与高斯模糊处理
 */
public class CircleImageActivity extends Activity {
    private Context context;
    private ImageView imgView, imgViewCir, imgViewRound;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_circleimage);
        context = this;
        imgView = findViewById(R.id.imgView);
        imgViewCir = findViewById(R.id.imgViewCir);
        imgViewRound = findViewById(R.id.imgViewRound);

        //实现高斯模糊
        Glide.with(this).load(R.mipmap.one)
                .apply(bitmapTransform(new BlurTransformation(50)))
                .into(imgView); //模糊效果

        Glide.with(this).load(R.mipmap.three)
                .apply(RequestOptions.bitmapTransform(new CircleCrop()))
                .into(imgViewCir);//圆行

        Glide.with(this).load(R.mipmap.two)
                .transform(new GlideRoundTransform(context, 10))  //图片圆角弧度
                .error(R.mipmap.ic_launcher)
                .placeholder(R.mipmap.ic_launcher)
                .into(imgViewRound);
    }

}

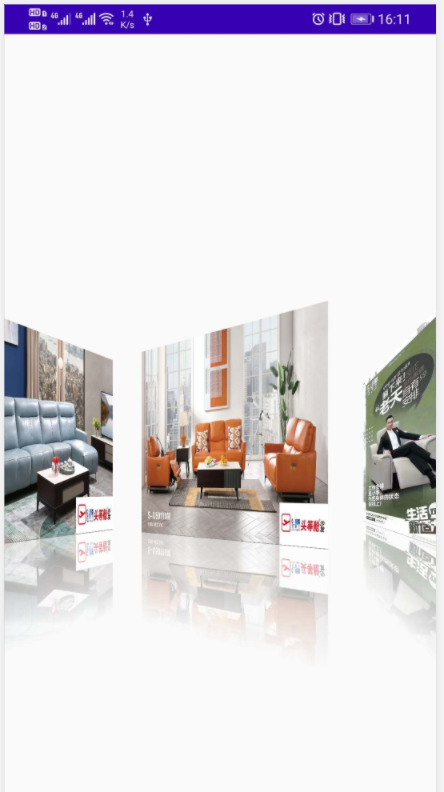

三、图片3D倒影显示

1.图片3D倒影显示的主要工具类：GalleryFlow

package com.ruidde.csndresourcedemo.daoying;

import android.content.Context;
import android.graphics.Camera;
import android.graphics.Matrix;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.Transformation;
import android.widget.Gallery;
import android.widget.ImageView;

public class GalleryFlow extends Gallery {

    private Camera mCamera = new Camera();
    /**
     * 图片间旋转的角度
     */
    private int mMaxRotationAngle = 60;
    private int mMaxZoom = -120;
    private int mCoveflowCenter;

    public GalleryFlow(Context context) {
        super(context);
        this.setStaticTransformationsEnabled(true);
    }

    public GalleryFlow(Context context, AttributeSet attrs) {
        super(context, attrs);
        this.setStaticTransformationsEnabled(true);
    }

    public GalleryFlow(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        this.setStaticTransformationsEnabled(true);
    }

    public int getMaxRotationAngle() {
        return mMaxRotationAngle;
    }

    public void setMaxRotationAngle(int maxRotationAngle) {
        mMaxRotationAngle = maxRotationAngle;
    }

    public int getMaxZoom() {
        return mMaxZoom;
    }

    public void setMaxZoom(int maxZoom) {
        mMaxZoom = maxZoom;
    }

    private int getCenterOfCoverflow() {
        return (getWidth() - getPaddingLeft() - getPaddingRight()) / 2
                + getPaddingLeft();
    }

    private static int getCenterOfView(View view) {
        return view.getLeft() + view.getWidth() / 2;
    }

    protected boolean getChildStaticTransformation(View child, Transformation t) {

        final int childCenter = getCenterOfView(child);
        final int childWidth = child.getWidth();
        int rotationAngle = 0;

        t.clear();
        t.setTransformationType(Transformation.TYPE_MATRIX);

        if (childCenter == mCoveflowCenter) {
            transformImageBitmap((ImageView) child, t, 0);
        } else {
            rotationAngle = (int) (((float) (mCoveflowCenter - childCenter) / childWidth) * mMaxRotationAngle);
            if (Math.abs(rotationAngle) > mMaxRotationAngle) {
                rotationAngle = (rotationAngle < 0) ? -mMaxRotationAngle
                        : mMaxRotationAngle;
            }
            transformImageBitmap((ImageView) child, t, rotationAngle);
        }

        return true;
    }

    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        mCoveflowCenter = getCenterOfCoverflow();
        super.onSizeChanged(w, h, oldw, oldh);
    }

    private void transformImageBitmap(ImageView child, Transformation t,
                                      int rotationAngle) {
        mCamera.save();
        final Matrix imageMatrix = t.getMatrix();
        final int imageHeight = child.getLayoutParams().height;
        final int imageWidth = child.getLayoutParams().width;
        final int rotation = Math.abs(rotationAngle);

        /**
         * 在Z轴上正向移动camera的视角，实际效果为放大图片。
         * 如果在Y轴上移动，则图片上下移动；X轴上对应图片左右移动。
         * */
        mCamera.translate(0.0f, 0.0f, 100.0f);

        // As the angle of the view gets less, zoom in
        if (rotation < mMaxRotationAngle) {
            float zoomAmount = (float) (mMaxZoom + (rotation * 1.5));
            mCamera.translate(0.0f, 0.0f, zoomAmount);
        }
        /**
         * 在Y轴上旋转，对应图片竖向向里翻转。
         * 如果在X轴上旋转，则对应图片横向向里翻转。
         * */
        mCamera.rotateY(rotationAngle);
        mCamera.getMatrix(imageMatrix);
        imageMatrix.preTranslate(-(imageWidth / 2), -(imageHeight / 2));
        imageMatrix.postTranslate((imageWidth / 2), (imageHeight / 2));
        mCamera.restore();
    }
}

2. 图片显示的适配器

package com.ruidde.csndresourcedemo.daoying;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.Bitmap.Config;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.LinearGradient;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.graphics.PorterDuff.Mode;
import android.graphics.PorterDuffXfermode;
import android.graphics.Shader.TileMode;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ImageView.ScaleType;

public class ImageAdapter extends BaseAdapter {
    private Context mContext;
    private Integer[] mImageIds;
    private ImageView[] mImages;

    public ImageAdapter(Context c, Integer[] ImageIds) {
        mContext = c;
        mImageIds = ImageIds;
        mImages = new ImageView[mImageIds.length];
    }

    @SuppressWarnings("deprecation")
    public boolean createReflectedImages() { //修改图片动画旋转的角度与倒影的设置
        final int reflectionGap = 4;
        int index = 0;

        for (int imageId : mImageIds) {
            Bitmap originalImage = BitmapFactory.decodeResource(mContext.getResources(), imageId);
            int width = originalImage.getWidth();
            int height = originalImage.getHeight();
            // 创建一个源图一样的图，利用martrix将图片旋转180度。这个倒影图的高是源图的一半。
            Matrix matrix = new Matrix();
            // 1表示放大比例，不放大也不缩小。
            // -1表示在y轴上相反，即旋转180度。
            matrix.preScale(1, -1);

            Bitmap reflectionImage = Bitmap.createBitmap(originalImage,
                    0,
                    height / 2,   // top为源图的一半
                    width,        // 宽度与源图一样
                    height / 2,   // 高度与源图的一半
                    matrix,
                    false);
            // 创建一个最终效果的图，即源图 + 间隙 + 倒影。
            Bitmap bitmapWithReflection = Bitmap.createBitmap(width, (height + height / 2), Config.ARGB_8888);
            // 依次将源图、倒影图绘制在最终的bitmap上面。
            Canvas canvas = new Canvas(bitmapWithReflection);
            canvas.drawBitmap(originalImage, 0, 0, null);
            Paint deafaultPaint = new Paint();
            canvas.drawRect(0, height, width, height + reflectionGap, deafaultPaint);
            canvas.drawBitmap(reflectionImage, 0, height + reflectionGap, null);
            // 创建LinearGradient，从而给定一个由上到下的渐变色。
            Paint paint = new Paint();
            LinearGradient shader = new LinearGradient(0, originalImage.getHeight(), 0, bitmapWithReflection.getHeight()
                    + reflectionGap, 0x70ffffff, 0x00ffffff, TileMode.CLAMP);
            paint.setShader(shader);
            paint.setXfermode(new PorterDuffXfermode(Mode.DST_IN));
            canvas.drawRect(0, height, width, bitmapWithReflection.getHeight() + reflectionGap, paint);
            //图片的显示
            ImageView imageView = new ImageView(mContext);
            imageView.setImageBitmap(bitmapWithReflection);
            imageView.setLayoutParams(new GalleryFlow.LayoutParams(500, 800)); //修改显示图片的大小
            imageView.setScaleType(ScaleType.FIT_XY);
            mImages[index++] = imageView;
        }
        return true;
    }

    private Resources getResources() {
        // TODO Auto-generated method stub
        return null;
    }

    public int getCount() {
        return mImageIds.length;
    }

    public Object getItem(int position) {
        return position;
    }

    public long getItemId(int position) {
        return position;
    }

    public View getView(int position, View convertView, ViewGroup parent) {
        return mImages[position];
    }

    public float getScale(boolean focused, int offset) {
        return Math.max(0, 1.0f / (float) Math.pow(2, Math.abs(offset)));
    }
}

3.Activity中使用

package com.ruidde.csndresourcedemo;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;

import androidx.annotation.Nullable;

import com.ruidde.csndresourcedemo.daoying.GalleryFlow;
import com.ruidde.csndresourcedemo.daoying.ImageAdapter;

/**
 * 图片3D倒影显示
 */
public class Image3DDaoYingActivity extends Activity {
    private Context context;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_3d_daoying);
        context = this;

        Integer[] images= new Integer[]{R.mipmap.one ,R.mipmap.two ,R.mipmap.three ,R.mipmap.four ,R.mipmap.five ,R.mipmap.six ,
                R.mipmap.seven ,R.mipmap.eight ,R.mipmap.nine};

        ImageAdapter adapter = new ImageAdapter(this, images);
        adapter.createReflectedImages();

        GalleryFlow galleryFlow =findViewById(R.id.galleryFlow);
        galleryFlow.setAdapter(adapter);
    }
}

4.XML文件

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.ruidde.csndresourcedemo.daoying.GalleryFlow
        android:id="@+id/galleryFlow"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"/>

</LinearLayout>
