Sentinel服务哨兵
Alibaba Sentinel 就是一款高性能且轻量级的流量控制、熔断降级可替换方案
Sentinel 官网:https://github.com/alibaba/Sentinel
1.Sentinel是什么
随着微服务的流行,服务和服务之间的稳定性变得越来越重要。Sentinel 以流量为切入点,从流量控制、熔断降级、系统负载保护等多个维度保护服务的稳定性。
Sentinel 具有以下特征:
丰富的应用场景:Sentinel 承接了阿里巴巴近 10 年的双十一大促流量的核心场景,例如秒杀(即突发流量控制在系统容量可以承受的范围)、消息削峰填谷、集群流量控制、实时熔断下游不可用应用等。
完备的实时监控:Sentinel 同时提供实时的监控功能。您可以在控制台中看到接入应用的单台机器秒级数据,甚至 500 台以下规模的集群的汇总运行情况。
广泛的开源生态:Sentinel 提供开箱即用的与其它开源框架/库的整合模块,例如与 Spring Cloud、
Dubbo、gRPC 的整合。您只需要引入相应的依赖并进行简单的配置即可快速地接入 Sentinel。
完善的 SPI 扩展点:Sentinel 提供简单易用、完善的 SPI 扩展接口。您可以通过实现扩展接口来快
速地定制逻辑。例如定制规则管理、适配动态数据源等
Sentinel 分为两个部分:
- **核心库(Java 客户端)不依赖任何框架/**库,能够运行于所有 Java 运行时环境,同时对 Dubbo Spring Cloud 等框架也有较好的支持。
- 控制台(Dashboard)基于 Spring Boot 开发,打包后可以直接运行,不需要额外的 Tomcat 等应用容器
2.Sentinel 的历史
- 2012 年,Sentinel 诞生,主要功能为入口流量控制。
- 2013-2017 年,Sentinel 在阿里巴巴集团内部迅速发展,成为基础技术模块,覆盖了所有的核心场景。Sentinel 也因此积累了大量的流量归整场景以及生产实践。
- 2018 年,Sentinel 开源,并持续演进。
3.Sentinel vs Hystrix
Sentinel | Hystrix | |
---|---|---|
隔离策略 | 信号量隔离(并发线程数限流) | 线程池隔离/信号量隔离 |
熔断降级策略 | 基于响应时间、异常比率、异常数 | 基于异常比率 |
实时指标实现 | 滑动窗口(LeapArray) | 滑动窗口(基于 RxJava) |
规则配置 | 支持多种数据源 | 支持多种数据源 |
扩展性 | 多个扩展点 | 插件的形式 |
基于注解的支 持 | 支持 | 支持 |
调用链路信息 | 支持同步调用 | 不支持 |
限流 | 基于 QPS / 并发数,支持基于调用关系的限流 | 有限支持 |
流量整形 | 支持慢启动、匀速器模式 | 不支持 |
系统负载保护 | 支持 | 不支持 |
控制台 | 开箱即用,可配置规则、查看秒级监控、机器发 现等 | 较为简单 |
常见框架的适 配 | Servlet、Spring Cloud、Dubbo、gRPC 等 | S Neertvflliext、Spring Cloud |
4.Sentinel核心
Sentinel 的使用可以分为两个部分:
- 核心库(Java 客户端):不依赖任何框架/库,能够运行于 Java 7 及以上的版本的运行时环境,同时对 Dubbo / Spring Cloud 等框架也有较好的支持(见 主流框架适配)。
- 控制台(Dashboard):控制台主要负责管理推送规则、监控、集群限流分配管理、机器发现等。
5.Sentinel 控制台
Sentinel 提供一个轻量级的开源控制台,它提供机器发现以及健康情况管理、监控(单机和集
群),规则管理和推送的功能。
下载:sentinel-dashboard-1.7.1.jar
启动控制台
java -Dserver.port=8080 -Dcsp.sentinel.dashboard.server=localhost:8080 -
Dproject.name=sentinel-dashboard -jar sentinel-dashboard-1.7.1.jar
注意:启动 Sentinel 控制台需要 JDK 版本为 1.8 及以上版本。
其中 -Dserver.port=8080 用于指定 Sentinel 控制台端口为 8080 。
从 Sentinel 1.6.0 起,Sentinel 控制台引入基本的登录功能,默认用户名和密码都是 sentinel
注:若您的应用为 Spring Boot 或 Spring Cloud 应用,您可以通过 Spring 配置文件来指定配置,详
情请参考 Spring Cloud Alibaba Sentinel 文档。
为了方便启动,可以编写一个启动脚本 run.bat :
java -Dserver.port=8080 -Dcsp.sentinel.dashboard.server=localhost:8080 -
Dproject.name=sentinel-dashboard -jar sentinel-dashboard-1.7.1.jar
pause
访问:http://localhost:8080/
6.环境准备
eureka-server :注册中心
eureka-server02 :注册中心
provider-service :商品服务
order-service-rest :订单服务,基于 Ribbon 通过 RestTemplate 调用商品服务
order-server-feign :订单服务,基于 Feign 通过声明式服务调用商品服务
7.客户端接入控制台
添加依赖
父工程需要添加如下依赖:
<dependencyManagement>
<dependencies>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>2.1.0.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
消费服务子工程添加依赖
<!-- spring-cloud-starter-alibaba-sentinel依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
配置文件
客户端需要启动 Transport 模块来与 Sentinel 控制台进行通信。
order-service-rest 的 application.yml
spring:
cloud:
sentinel:
transport:
port: 8719
dashboard: localhost:8080
这里的 spring.cloud.sentinel.transport.port 端口配置会在应用对应的机器上启动一个
Http Server,该 Server 会与 Sentinel 控制台做交互。比如 Sentinel 控制台添加了一个限流规则,会把规则数据 push 给这个 Http Server 接收,Http Server 再将规则注册到 Sentinel 中
初始化客户端
客户端,Sentinel 即可完成客户端初始化操作,并持续向控制台发送心跳包

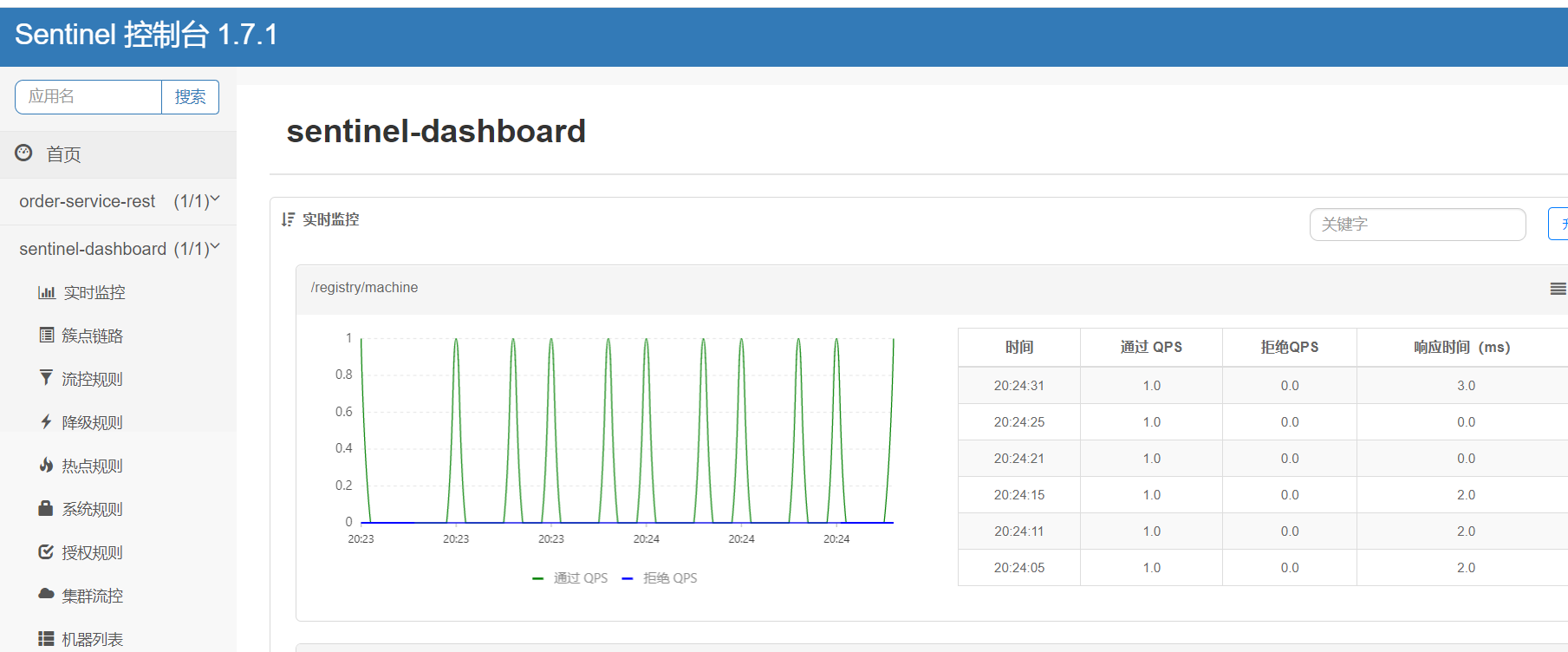

访问
首先确保 Sentinel 是启动状态,然后依次启动 eureka-server,eureka-server02,product-service,
order-service-rest。
多次访问:http://localhost:9090/product/2
定义资源
资源 是 Sentinel 中的核心概念之一。我们说的资源,可以是任何东西,服务,服务里的方法,甚
至是一段代码。最常用的资源是我们代码中的 Java 方法。Sentinel 提供了 @SentinelResource
注解
用于定义资源,并提供了 AspectJ 的扩展用于自动定义资源、处理 BlockException
等。
模拟服务出错
修改 order-service-rest 项目中的核心代码,模拟服务出错
/**
* 商品管理
*/
@Service
public class ProductServiceImpl implements ProductService {
@Autowired
private RestTemplate restTemplate;
/**
* 根据主键查询商品
* *
@param id
* @return
*/
@SentinelResource(value = "selectProductById",
blockHandler = "selectProductByIdBlockHandler", fallback =
"selectProductByIdFallback")
@Override
public Product selectProductById(Integer id) {
// 模拟查询主键为 1 的商品信息会导致异常
if (1 == id)
throw new RuntimeException("查询主键为 1 的商品信息导致异常");
return restTemplate.getForObject("http://product-service/product/" + id,
Product.class);
}
// 服务流量控制处理,参数最后多一个 BlockException,其余与原函数一致。
public Product selectProductByIdBlockHandler(Integer id, BlockException ex) {
// Do some log here.
ex.printStackTrace();
return new Product(id, "服务流量控制处理-托底数据", 1, 6666D);
} /
/ 服务熔断降级处理,函数签名与原函数一致或加一个 Throwable 类型的参数
public Product selectProductByIdFallback(Integer id, Throwable throwable) {
System.out.println("product-service 服务的 selectProductById 方法出现异常,
异常信息如下:"
+ throwable);
return new Product(id, "服务熔断降级处理-托底数据", 1, 6666D);
}
}
注意:注解方式埋点不支持 private 方法
定义规则
Sentinel 的所有规则都可以在内存态中动态地查询及修改,修改之后立即生效。同时 Sentinel 也提
供相关 API,供您来定制自己的规则策略。
Sentinel 支持以下几种规则:流量控制规则、熔断降级规则、系统保护规则、来源访问控制规则*和 热点参数规则
流量控制规则

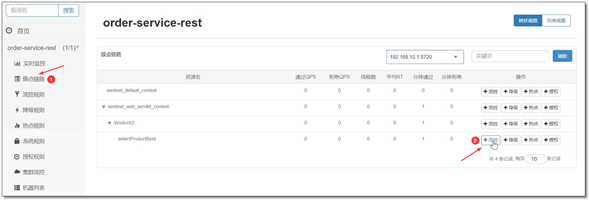

选择 簇点链路 找到定义好的资源 selectProductById 并点击对应的规则按钮进行设置

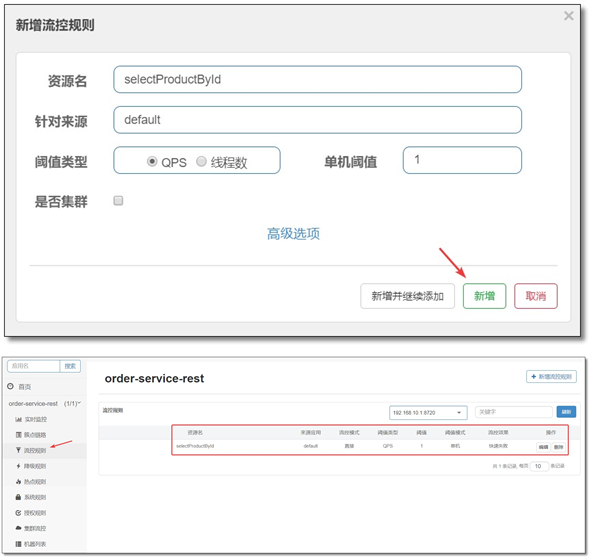

比如我们设置一个流量控制规则,定义资源访问的 QPS 为 1(每秒能处理查询数目 )
快速刷新页面多次访问:http://localhost:9090/product/2

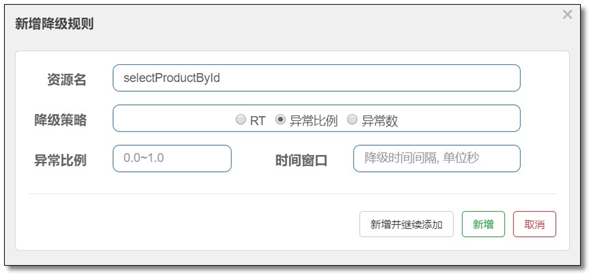

熔断降级规则
熔断降级规则支持相应时间、异常比例、异常数三种方式

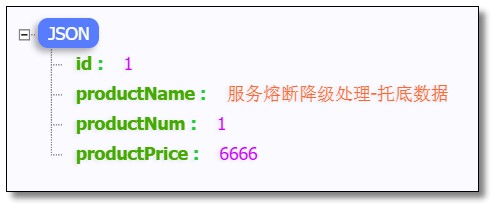

访问:http://localhost:9090/product/1
加载本地规则
Sentinel 支持通过本地文件加载规则配置,使用方式如下(限流规则作为演示)
spring:
cloud:
datasource:
ds1:
file:
file: classpath:flowRule.json
data-type: json
rule-type: flow
flowRule.json 对应 com.alibaba.csp.sentinel.slots.block.RuleConstant 各属性
[
{
"resource": "selectProductList",
"count": 1,
"grade": 1,
"limitApp": "default",
"strategy": 0,
"controlBehavior": 0
}
]
重要属性
Field | 说明 | 默认值 |
---|---|---|
resource | 资源名,资源名是限流规则的作用对象 | |
count | 限流阈值 | |
grade | 限流阈值类型,QPS 模式(1)或并发线程数模式 (0) | QPS 模式 |
limitApp | 流控针对的调用来源 | default ,代表不区 分调用来源 |
strategy | 调用关系限流策略:直接、链路、关联 | 根据资源本身(直接) |
controlBehavior | 流控效果(直接拒绝 / 排队等待 / 慢启动模式), 不支持按调用关系限流 | 直接拒绝 |
clusterMode | 是否集群限流 | 否 |
访问客户端以后,刷新控制台,查看流控规则如下
8.RestTemplate支持
Spring Cloud Alibaba Sentinel 支持对 RestTemplate 调用的服务进行服务保护。需要在构造
RestTemplate Bean 时添加@SentinelRestTemplate
注解
启动类
@SpringBootApplication
public class OrderServiceRestApplication {
@Bean
@LoadBalanced
@SentinelRestTemplate(blockHandler = "handleException", blockHandlerClass = ExceptionUtil.class,
fallback = "fallback", fallbackClass = ExceptionUtil.class)
public RestTemplate restTemplate() {
return new RestTemplate();
}
public static void main(String[] args) {
SpringApplication.run(OrderServiceRestApplication.class, args);
}
}
服务熔断处理类
ExceptionUtil.java必须用静态方法
package com.example.exception;
import com.alibaba.cloud.sentinel.rest.SentinelClientHttpResponse;
import com.alibaba.csp.sentinel.slots.block.BlockException;
import com.alibaba.fastjson.JSON;
import com.example.pojo.Product;
import org.springframework.http.HttpRequest;
import org.springframework.http.client.ClientHttpRequestExecution;
import org.springframework.http.client.ClientHttpResponse;
public class ExceptionUtil {
// 服务流量控制处理
public static ClientHttpResponse handleException(HttpRequest request,
byte[] body,
ClientHttpRequestExecution execution,
BlockException exception) {
exception.printStackTrace();
System.out.println("-----handleException-----");
return new SentinelClientHttpResponse(
JSON.toJSONString(new Product(1, "服务流量控制处理-托底数据", 1, 6666D)));
}
// 服务熔断降级处理
public static ClientHttpResponse fallback(HttpRequest request,
byte[] body,
ClientHttpRequestExecution execution,
BlockException exception) {
exception.printStackTrace();
return new SentinelClientHttpResponse(
JSON.toJSONString(new Product(1, "服务熔断降级处理-托底数据", 1, 6666D)));
}
}
访问
控制台设置流量控制规则,定义资源访问的 QPS 为 1(每秒能处理查询数目)。
快速刷新页面多次访问:http://localhost:9090/product/2
9.OpenFeign支持
其实不管是 Hystrix 还是 Sentinel 对于 Feign 的支持,核心代码基本上是一致的,只需要修改依赖和
配置文件即可
添加依赖
<!-- spring cloud openfeign 依赖 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- spring cloud alibaba sentinel 依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
开启Sentinel
spring:
application:
name: order-service-feign # 应用名称
cloud:
sentinel:
transport:
port: 8719
dashboard: localhost:8080
# 端口
server:
port: 9091
# 配置 Eureka Server 注册中心
eureka:
instance:
prefer-ip-address: true # 是否使用 ip 地址注册
instance-id: ${spring.cloud.client.ip-address}:${server.port} # ip:port
client:
service-url: # 设置服务注册中心地址
defaultZone: http://localhost:8761/eureka/,http://localhost:8762/eureka/
# feign 开启 sentinel 支持
feign:
sentinel:
enabled: true
熔断降级
ProductServiceFallback.java
/**
* 服务熔断降级处理可以捕获异常
*/
@Component
public class ProductServiceFallbackFactory implements FallbackFactory<ProductService> {
// 获取日志,在需要捕获异常的方法中进行处理
Logger logger = LoggerFactory.getLogger(ProductServiceFallbackFactory.class);
@Override
public ProductService create(Throwable throwable) {
return new ProductService() {
@Override
public Product selectProductById(Integer id) {
logger.error("product-service 服务的 selectProductById 方法出现异常,异常信息如下:"
+ throwable);
return new Product(id, "托底数据", 2, 6666D);
}
};
}
}
消费服务
/**
* 商品管理
*/
// 声明需要调用的服务
@FeignClient(value = "product-service", fallbackFactory = ProductServiceFallbackFactory.class)
public interface ProductService {
/**
* 根据主键查询商品
*
* @param id
* @return
*/
@GetMapping("/product/{id}")
Product selectProductById(@PathVariable("id") Integer id);
}
控制层
@RestController
@RequestMapping("/product")
public class ProductController {
@Autowired
private ProductService productService;
/**
* 根据主键查询商品
*
* @param id
* @return
*/
@GetMapping("/{id}")
public Product selectProductById(@PathVariable("id") Integer id) {
return productService.selectProductById(id);
}
}
启动类
// 开启 FeignClients 注解
@EnableFeignClients
@SpringBootApplication
public class OrderServiceFeignApplication {
public static void main(String[] args) {
SpringApplication.run(OrderServiceFeignApplication.class, args);
}
}
关闭服务提供者,访问:http://localhost:9091/product/2
