解决调用微信公众平台-获取草稿列表响应中文乱码问题

一、问题背景

在对接微信公众平台过程中，需要调用“获取草稿列表”的接口，其官网地址如下：https://developers.weixin.qq.com/doc/offiaccount/Draft_Box/Get_draft_list.html，在测试过程中发现返回的中文乱码，其表现如下：

响应结果中，title、author、content等字段出现中文乱码问题。

二、问题代码

1.调用微信公众平台-获取草稿列表代码

   public BaseDataResponse getDraftList(WechatDraftListRequest draftListRequest) {
        // 创建响应结果
        WechatDraftListResponse resp;
        String organizationCode = draftListRequest.getOrganizationCode();
        // 校验请求参数
        if (StringUtils.isBlank(organizationCode)) {
            throw new BusinessException(ResultCode.PARAMS_ERROR);
        }
        log.info("organizationCode:{} getDraftList requestParam:{}", organizationCode, draftListRequest);
        // 根据机构号获取对应的access_token
        String accessToken = customerOpenService.queryAccessToken(organizationCode);
        String draftUrl = String.format(draftListUrl, accessToken);

        // 组装请求参数
        Map<String, Object> requestParameters = new HashMap<>();
        requestParameters.put(WechatConstants.RESPONSE_COUNT, draftListRequest.getCount());
        requestParameters.put(WechatConstants.RESPONSE_OFFSET, draftListRequest.getOffset());
        HttpEntity entity = new HttpEntity(requestParameters, null);
        ResponseEntity<String> res = restTemplate.exchange(draftUrl, HttpMethod.POST, entity, String.class);
                organizationCode, JSONObject.toJSON(res.getHeaders()));
        String str = res.getBody();
        log.info("organizationCode:{} getDraftList str:{}", organizationCode, str);
        JSONObject json = JSONObject.parseObject(str);
        // 微信
        if (!ObjectUtils.isEmpty(json.getInteger(WechatConstants.ERRCODE))) {
            log.error("organizationCode:{} getDraftList wechat response error:{}", organizationCode, str);
            return BaseDataResponse.error(json.getInteger(WechatConstants.ERRCODE).toString()
                    , json.getString(WechatConstants.ERRMSG));
        }
        resp = JSON.toJavaObject(json, WechatDraftListResponse.class);
        return BaseDataResponse.success(resp);
    }

2.配置RestTemplate的代码

import java.util.List;
import java.util.concurrent.TimeUnit;
import okhttp3.ConnectionPool;
import okhttp3.OkHttpClient;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.client.ClientHttpRequestFactory;
import org.springframework.http.client.OkHttp3ClientHttpRequestFactory;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.web.client.RestTemplate;

@Configuration
public class RestTemplateConfig {

    @Value("${ok.http.connect-timeout}")
    private Integer connectTimeout;

    @Value("${ok.http.read-timeout}")
    private Integer readTimeout;

    @Value("${ok.http.write-timeout}")
    private Integer writeTimeout;

    @Value("${ok.http.max-idle-connections}")
    private Integer maxIdleConnections;

    @Value("${ok.http.keep-alive-duration}")
    private Long keepAliveDuration;


    /**
     * 声明 RestTemplate
     */
    @Bean
    public RestTemplate httpRestTemplate() {
        ClientHttpRequestFactory factory = httpRequestFactory();
        RestTemplate restTemplate = new RestTemplate(factory);
        restTemplate.getMessageConverters().add(new CustomerMappingJackson2HttpMessageConverter());
        List<HttpMessageConverter<?>> httpMessageConverters = restTemplate.getMessageConverters();
        return restTemplate;
    }

    public ClientHttpRequestFactory httpRequestFactory() {
        return new OkHttp3ClientHttpRequestFactory(okHttpConfigClient());
    }

    public OkHttpClient okHttpConfigClient() {
        return new OkHttpClient().newBuilder()
                .connectionPool(pool())
                .connectTimeout(connectTimeout, TimeUnit.SECONDS)
                .readTimeout(readTimeout, TimeUnit.SECONDS)
                .writeTimeout(writeTimeout, TimeUnit.SECONDS)
                .hostnameVerifier((hostname, session) -> true)
                // 设置代理
//              .proxy(new Proxy(Proxy.Type.HTTP, new InetSocketAddress("127.0.0.1", 8888)))
                // 拦截器
//              .addInterceptor()
                .build();
    }

    public ConnectionPool pool() {
        return new ConnectionPool(maxIdleConnections, keepAliveDuration, TimeUnit.SECONDS);
    }
}

这里引用了okhttp

            <dependency>
                <groupId>com.squareup.okhttp3</groupId>
                <artifactId>okhttp</artifactId>
                <version>3.12.2</version>
            </dependency>

三、解决思路

1.配置请求头

乱码问题最常见的解决方法就是在请求头中设置Content-Type，于是首先在http请求头中设置了Content-Type，添加如下代码：

添加之后，再次测试发现乱码依然存在，问题没有解决。

2.配置CharsetConfig

通过查询配置了springboot全局解决中文乱码的问题的配置类，代码如下：

import com.alibaba.fastjson.serializer.SerializerFeature;
import com.alibaba.fastjson.support.config.FastJsonConfig;
import com.alibaba.fastjson.support.spring.FastJsonHttpMessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.StringHttpMessageConverter;
import org.springframework.web.servlet.config.annotation.ContentNegotiationConfigurer;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;

@Configuration
public class CharsetConfig extends WebMvcConfigurationSupport {
    @Bean
    public HttpMessageConverter<String> responseBodyConverter() {
        return new StringHttpMessageConverter(
                StandardCharsets.UTF_8);
    }

    @Override
    public void configureMessageConverters(
            List<HttpMessageConverter<?>> converters) {
        super.configureMessageConverters(converters);
        converters.add(responseBodyConverter());

        FastJsonHttpMessageConverter fastConverter = new FastJsonHttpMessageConverter();
        FastJsonConfig fastJsonConfig = new FastJsonConfig();
        fastJsonConfig.setSerializerFeatures(
                SerializerFeature.PrettyFormat
        );
        List<MediaType> fastMediaTypes = new ArrayList<>();
        fastMediaTypes.add(MediaType.APPLICATION_JSON_UTF8);
        fastConverter.setSupportedMediaTypes(fastMediaTypes);
        fastConverter.setFastJsonConfig(fastJsonConfig);

        converters.add(fastConverter);
    }

    @Override
    public void configureContentNegotiation(
            ContentNegotiationConfigurer configurer) {
        configurer.favorPathExtension(false);
    }
}

配置之后，重启服务，重新测试，发现依旧乱码，问题仍然没有解决。

3.修改RestTemplateConfig

1.此时，我在代码中增加了两行日志

重新调试，发现打印结果如下：

发现响应里面的编码格式竟然为空，而Content-Type是text/plain，只能吐槽一句，微信接口是真的坑啊。

2.debug进入了StringHttpMessageConverter类，发现解码的时候走到了StringHttpMessageConverter类的readInternal方法，如图：

3.继续进入getContentTypeCharset方法

发现响应的charset为null，Content-Type是text/plain的情况下，使用的是默认编码StandardCharsets.ISO_8859_1。至此真相大白。

四、问题解决

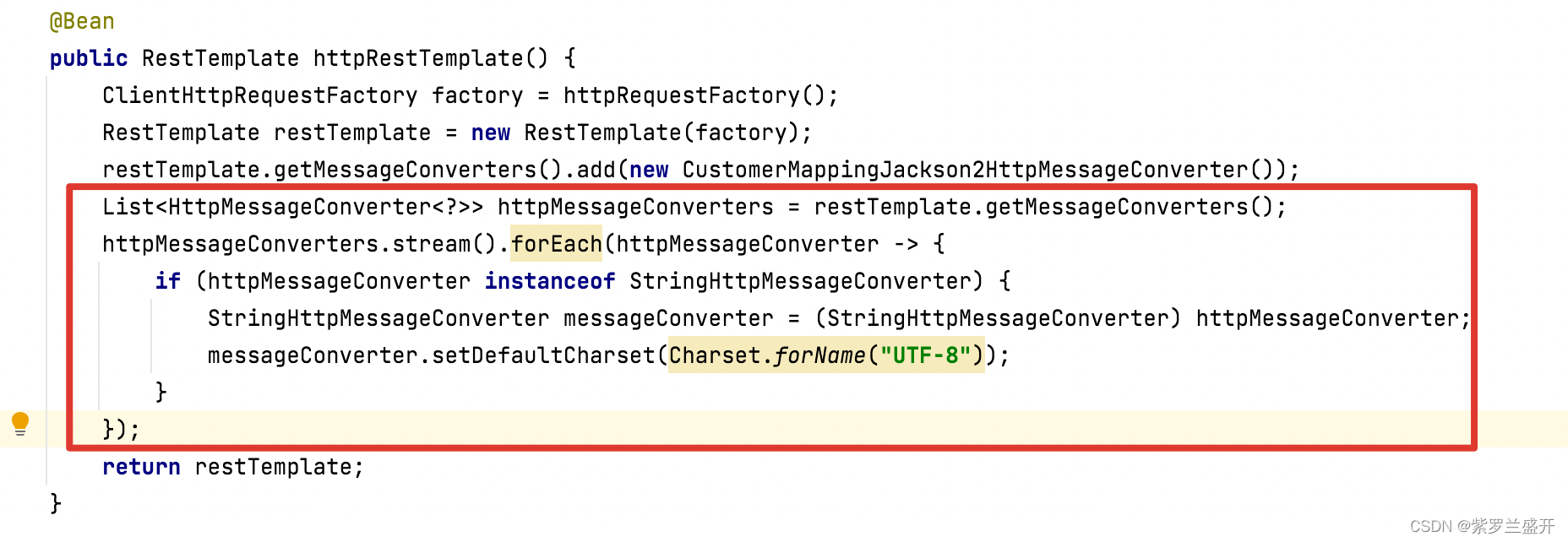

于是在配置RestTemplate的代码，配置类RestTemplateConfig中修改生成RestTemplate对象bean的代码如下：

    @Bean
    public RestTemplate httpRestTemplate() {
        ClientHttpRequestFactory factory = httpRequestFactory();
        RestTemplate restTemplate = new RestTemplate(factory);
        restTemplate.getMessageConverters().add(new CustomerMappingJackson2HttpMessageConverter());
        List<HttpMessageConverter<?>> httpMessageConverters = restTemplate.getMessageConverters();
        httpMessageConverters.stream().forEach(httpMessageConverter -> {
            if (httpMessageConverter instanceof StringHttpMessageConverter) {
                StringHttpMessageConverter messageConverter = (StringHttpMessageConverter) httpMessageConverter;
                messageConverter.setDefaultCharset(Charset.forName("UTF-8"));
            }
        });
        return restTemplate;
    }
