重要类
- iosource::Manager
- timer_mgr
问题
- 包是从何时开始捕获的？其包的函数流程？
IOSource
class IOSource
{
// 构造函数，
IOSource(bool process_fd = false)
// 返回该source是否是打开状态即可读取状态
bool IsOpen()
// 如果是packet的Source则返回true
virtual bool IsPacketSource()
// 对source进行初始化，此函数在派生类中被重写
virtual void InitSource()
// 在关闭source时执行，可以在派生类中重写
virtual void Done()
// 返回此source的超时值。具有超时类的可以重写此函数
virtual double GetNextTimeout() = 0;
// 处理并使用下一个数据项
virtual void Process() = 0;
/ 可选的处理方法，运行IOSource只处理文件描述符，如果实现此方法则构造时必须传true
virtual void ProcessFd(int fd, int flags) { }
bool ImplementsProcessFd() const { return implements_process_fd; }
// 返回改源的描述信息
virtual const char* Tag() = 0;
protected:
// 当close时的回调函数
void SetClosed(bool is_closed) { closed = is_closed; }
}

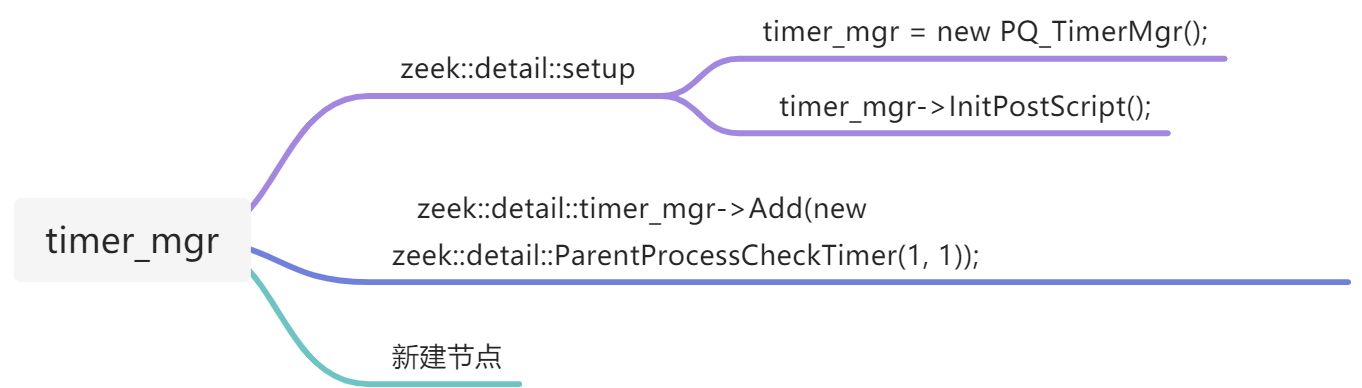

timer_mgr
PCAP
void init_run(const std::optional<std::string>& interface,
const std::optional<std::string>& pcap_input_file,
const std::optional<std::string>& pcap_output_file, bool do_watchdog)
{
if ( pcap_input_file )// 初始化pcap文件
{
reading_live = pseudo_realtime > 0.0;
reading_traces = true;
iosource::PktSrc* ps = iosource_mgr->OpenPktSrc(*pcap_input_file, false);
assert(ps);
if ( ! ps->IsOpen() )
reporter->FatalError("problem with trace file %s (%s)", pcap_input_file->c_str(),
ps->ErrorMsg());
}
else if ( interface ) // 初始化网络接口
{
reading_live = true;
reading_traces = false;
iosource::PktSrc* ps = iosource_mgr->OpenPktSrc(*interface, true);
assert(ps);
if ( ! ps->IsOpen() )
reporter->FatalError("problem with interface %s (%s)", interface->c_str(),
ps->ErrorMsg());
}
else
// have_pending_timers = true, possibly. We don't set
// that here, though, because at this point we don't know
// whether the user's zeek_init() event will indeed set
// a timer.
reading_traces = reading_live = false;
if ( pcap_output_file ) //输出
{
const char* writefile = pcap_output_file->data();
pkt_dumper = iosource_mgr->OpenPktDumper(writefile, false);
assert(pkt_dumper);
if ( ! pkt_dumper->IsOpen() )
reporter->FatalError("problem opening dump file %s (%s)", writefile,
pkt_dumper->ErrorMsg());
if ( const auto& id = zeek::detail::global_scope()->Find("trace_output_file") )
id->SetVal(make_intrusive<StringVal>(writefile));
else
reporter->Error("trace_output_file not defined");
}
zeek::detail::init_ip_addr_anonymizers();
session_mgr = new session::Manager();
if ( do_watchdog )
{
// Set up the watchdog to make sure we don't wedge.
(void)setsignal(SIGALRM, watchdog);
(void)alarm(zeek::detail::watchdog_interval);
}
}
PcapSource
类图
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-o1hgnrw8-1660489984249)(https://cdn.nlark.com/yuque/__puml/8d2aa40217f934d218907956836d1c01.svg#lake_card_v2=eyJ0eXBlIjoicHVtbCIsImNvZGUiOiJAc3RhcnR1bWxcbmNsYXNzIElPU291cmNle1xuXHQrIElPU291cmNlKHByb2Nlc3NfZmQpXG5cdCsgfklPU291cmNlKClcblx0KyBib29sIElzT3BlbigpXG5cdCsge2Fic3RyYWN0fSBib29sIElzUGFja2V0U291cmNlKClcblx0KyB7YWJzdHJhY3R9IHZvaWQgSW5pdFNvdXJjZSgpXG5cdCsge2Fic3RyYWN0fSB2b2lkIERvbmUoKVxuXHQrIHthYnN0cmFjdH0gZG91YmxlIEdldE5leHRUaW1lb3V0KClcblx0KyB7YWJzdHJhY3R9IHZvaWQgUHJvY2VzcygpIFxuXHQrIHthYnN0cmFjdH0gdm9pZCBQcm9jZXNzRmQoaW50IGZkLCBpbnQgZmxhZ3MpXG5cdCsgYm9vbCBJbXBsZW1lbnRzUHJvY2Vzc0ZkKCkgXG5cdCsge2Fic3RyYWN0fSBjb25zdCBjaGFyKiBUYWcoKVxuXHQjIHZvaWQgU2V0Q2xvc2VkKGJvb2wgaXNfY2xvc2VkKVxuXHRcblx0LSBjbG9zZWRcblx0LSBpbXBsZW1lbnRzX3Byb2Nlc3NfZmRcbn1cblxuY2xhc3MgUGt0U3JjIHtcblx0KyBQa3RTcmMoKVxuXHQrIH5Qa3RTcmMoKVxuXHQrIGNvbnN0IHN0ZDo6c3RyaW5nJiBQYXRoKClcblx0KyBib29sIElzTGl2ZSgpXG5cdCsgaW50IExpbmtUeXBlKClcblx0KyB1aW50MzJfdCBOZXRtYXNrKClcblx0KyBib29sIElzRXJyb3IoKVxuXHQrIGNvbnN0IGNoYXIqIEVycm9yTXNnKClcblx0KyBib29sIFByZWNvbXBpbGVCUEZGaWx0ZXIoaW50IGluZGV4LCBjb25zdCBzdGQ6OnN0cmluZyYgZmlsdGVyKVxuXHQrIGRldGFpbDo6QlBGX1Byb2dyYW0qIEdldEJQRkZpbHRlcihpbnQgaW5kZXgpXG5cdCsgYm9vbCBBcHBseUJQRkZpbHRlcihpbnQgaW5kZXgsIGNvbnN0IHN0cnVjdCBwY2FwX3BrdGhkciogaGRyLCBjb25zdCB1X2NoYXIqIHBrdClcblx0KyBib29sIEdldEN1cnJlbnRQYWNrZXQoY29uc3QgUGFja2V0KiogaGRyKSBcblx0KyB7YWJzdHJhY3R9IGJvb2wgUHJlY29tcGlsZUZpbHRlcihpbnQgaW5kZXgsIGNvbnN0IHN0ZDo6c3RyaW5nJiBmaWx0ZXIpXG5cdCsge2Fic3RyYWN0fSBib29sIFNldEZpbHRlcihpbnQgaW5kZXgpXG5cdCsge2Fic3RyYWN0fSB2b2lkIFN0YXRpc3RpY3MoU3RhdHMqIHN0YXRzKVxuXHQrIHthYnN0cmFjdH0gZG91YmxlIEdldE5leHRUaW1lb3V0KCkgXG5cdCMgdm9pZCBPcGVuZWQoY29uc3QgUHJvcGVydGllcyYgcHJvcHMpXG5cdCMgdm9pZCBDbG9zZWQoKVxuXHQjIHZvaWQgSW5mbyhjb25zdCBzdGQ6OnN0cmluZyYgbXNnKVxuXHQjIHZvaWQgRXJyb3IoY29uc3Qgc3RkOjpzdHJpbmcmIG1zZylcblx0IyB2b2lkIFdlaXJkKGNvbnN0IHN0ZDo6c3RyaW5nJiBtc2csIGNvbnN0IFBhY2tldCogcGt0KVxuXHQjIHZvaWQgSW50ZXJuYWxFcnJvcihjb25zdCBzdGQ6OnN0cmluZyYgbXNnKVxuXHQjIHZvaWQgT3BlbigpXG5cdCMgdm9pZCBDbG9zZSgpXG5cdCMgYm9vbCBFeHRyYWN0TmV4dFBhY2tldChQYWNrZXQqIHBrdClcblx0IyB2b2lkIERvbmVXaXRoUGFja2V0KClcblx0LVx0Ym9vbCBFeHRyYWN0TmV4dFBhY2tldEludGVybmFsKClcblx0LSB2b2lkIEluaXRTb3VyY2UoKSBvdmVycmlkZVxuXHQtIHZvaWQgRG9uZSgpIG92ZXJyaWRlXG5cdC0gdm9pZCBQcm9jZXNzKCkgb3ZlcnJpZGVcblx0LSBjb25zdCBjaGFyKiBUYWcoKSBvdmVycmlkZVxuXHQtIFByb3BlcnRpZXMgcHJvcHNcbiAgLSBib29sIGhhdmVfcGFja2V0XG5cdC0gUGFja2V0IGN1cnJlbnRfcGFja2V0XG5cdC0gc3RkOjp2ZWN0b3I8ZGV0YWlsOjpCUEZfUHJvZ3JhbSo-IGZpbHRlcnNcblx0LSBzdGQ6OnN0cmluZyBlcnJidWZcblx0fTtcbn1cblxuY2xhc3MgUGNhcFNvdXJjZSB7XG5cdCsgUGNhcFNvdXJjZShjb25zdCBzdGQ6OnN0cmluZyYgcGF0aCwgYm9vbCBpc19saXZlKVxuXHQrIH5QY2FwU291cmNlKCkgb3ZlcnJpZGU7XG5cblx0KyB7c3RhdGljfSBQa3RTcmMqIEluc3RhbnRpYXRlKGNvbnN0IHN0ZDo6c3RyaW5nJiBwYXRoLCBib29sIGlzX2xpdmUpXG5cblx0IyB2b2lkIE9wZW4oKSBvdmVycmlkZVxuXHQjIHZvaWQgQ2xvc2UoKSBvdmVycmlkZVxuXHQjIGJvb2wgRXh0cmFjdE5leHRQYWNrZXQoUGFja2V0KiBwa3QpIG92ZXJyaWRlXG5cdCMgdm9pZCBEb25lV2l0aFBhY2tldCgpIG92ZXJyaWRlXG5cdCMgYm9vbCBQcmVjb21waWxlRmlsdGVyKGludCBpbmRleCwgY29uc3Qgc3RkOjpzdHJpbmcmIGZpbHRlcikgb3ZlcnJpZGVcblx0IyBib29sIFNldEZpbHRlcihpbnQgaW5kZXgpIG92ZXJyaWRlXG5cdCMgdm9pZCBTdGF0aXN0aWNzKFN0YXRzKiBzdGF0cykgb3ZlcnJpZGVcblxuXHQtIHZvaWQgT3BlbkxpdmUoKVxuXHQtIHZvaWQgT3Blbk9mZmxpbmUoKVxuXHQtIHZvaWQgUGNhcEVycm9yKGNvbnN0IGNoYXIqIHdoZXJlID0gbnVsbHB0cilcblxuXHQtIFByb3BlcnRpZXMgcHJvcHM7XG5cdC0gU3RhdHMgc3RhdHM7XG5cdC0gcGNhcF90KiBwZDtcbn1cblxuSU9Tb3VyY2UgLT4gUGt0U3JjXG5Qa3RTcmMgLT4gUGNhcFNvdXJjZVxuXG5cbkBlbmR1bWwiLCJ1cmwiOiJodHRwczovL2Nkbi5ubGFyay5jb20veXVxdWUvX19wdW1sLzhkMmFhNDAyMTdmOTM0ZDIxODkwNzk1NjgzNmQxYzAxLnN2ZyIsImlkIjoienVIbzQiLCJtYXJnaW4iOnsidG9wIjp0cnVlLCJib3R0b20iOnRydWV9LCJjYXJkIjoiZGlhZ3JhbSJ9)]
构造函数
堆栈信息
zeek::iosource::pcap::PcapSource::PcapSource Source.cc:26
zeek::iosource::pcap::PcapSource::Instantiate Source.cc:358
zeek::iosource::Manager::OpenPktSrc Manager.cc:442
zeek::run_state::detail::init_run RunState.cc:165
zeek::detail::setup zeek-setup.cc:853
main main.cc:13
__libc_start_main 0x00007ffff5e62083
_start 0x000055555619e1be
- 创建
PktSrc* Manager::OpenPktSrc(const std::string& path, bool is_live)
{
std::pair<std::string, std::string> t = split_prefix(path);
const auto& prefix = t.first;
const auto& npath = t.second;
// Find the component providing packet sources of the requested prefix.
PktSrcComponent* component = nullptr;
std::list<PktSrcComponent*> all_components = plugin_mgr->Components<PktSrcComponent>();
for ( const auto& c : all_components )
{
if ( c->HandlesPrefix(prefix) &&
((is_live && c->DoesLive()) || (! is_live && c->DoesTrace())) )
{
component = c;
break;
}
}
if ( ! component )
reporter->FatalError("type of packet source '%s' not recognized, or mode not supported",
prefix.c_str());
// 初始化PktSrc
PktSrc* ps = (*component->Factory())(npath, is_live);
assert(ps);
DBG_LOG(DBG_PKTIO, "Created packet source of type %s for %s", component->Name().c_str(),
npath.c_str());
Register(ps);
return ps;
}
- 构造PcapSource
iosource::PktSrc* PcapSource::Instantiate(const std::string& path, bool is_live)
{
return new PcapSource(path, is_live);
}
PcapSource::PcapSource(const std::string& path, bool is_live)
{
props.path = path;
props.is_live = is_live;
pd = nullptr;
}
open
堆栈信息
zeek::iosource::pcap::PcapSource::Open Source.cc:34
zeek::iosource::PktSrc::InitSource PktSrc.cc:137
zeek::iosource::Manager::Register Manager.cc:369
zeek::iosource::Manager::Register Manager.cc:393
zeek::iosource::Manager::OpenPktSrc Manager.cc:448
zeek::run_state::detail::init_run RunState.cc:165
zeek::detail::setup zeek-setup.cc:853
main main.cc:13
__libc_start_main 0x00007ffff5e62083
_start 0x000055555619e1be
- zeek::iosource::Manager::Register Manager.cc:393
void Manager::Register(PktSrc* src)
{
pkt_src = src;
// The poll interval gets defaulted to 100 which is good for cases like reading
// from pcap files and when there isn't a packet source, but is a little too
// infrequent for live sources (especially fast live sources). Set it down a
// little bit for those sources.
if ( src->IsLive() )
poll_interval = 10;
else if ( run_state::pseudo_realtime )
poll_interval = 1;
Register(src, false);
}
- zeek::iosource::Manager::Register Manager.cc:369
void Manager::Register_(IOSource* src, bool dont_count, bool manage_lifetime)_
void Manager::Register(IOSource* src, bool dont_count, bool manage_lifetime)
{
// First see if we already have registered that source. If so, just
// adjust dont_count.
for ( const auto& iosrc : sources )
{
if ( iosrc->src == src )
{
if ( iosrc->dont_count != dont_count )
// Adjust the global counter.
dont_counts += (dont_count ? 1 : -1);
return;
}
}
src->InitSource();
Source* s = new Source;
s->src = src;
s->dont_count = dont_count;
s->manage_lifetime = manage_lifetime;
if ( dont_count )
++dont_counts;
sources.push_back(s);
}
- zeek::iosource::PktSrc::InitSource PktSrc.cc:137
void PktSrc::InitSource()
{
Open();
}
void PcapSource::Open()
{
if ( props.is_live )
OpenLive();
else
OpenOffline();
}
- 打开网络接口
void PcapSource::OpenLive()
{
char errbuf[PCAP_ERRBUF_SIZE];
// Determine interface if not specified.
if ( props.path.empty() )
{
pcap_if_t* devs;
if ( pcap_findalldevs(&devs, errbuf) < 0 )
{
Error(util::fmt("pcap_findalldevs: %s", errbuf));
return;
}
if ( devs )
{
props.path = devs->name;
pcap_freealldevs(devs);
if ( props.path.empty() )
{
Error("pcap_findalldevs: empty device name");
return;
}
}
else
{
Error("pcap_findalldevs: no devices found");
return;
}
}
// Determine network and netmask.
uint32_t net;
if ( pcap_lookupnet(props.path.c_str(), &net, &props.netmask, errbuf) < 0 )
{
// ### The lookup can fail if no address is assigned to
// the interface; and libpcap doesn't have any useful notion
// of error codes, just error std::strings - how bogus - so we
// just kludge around the error :-(.
// sprintf(errbuf, "pcap_lookupnet %s", errbuf);
// return;
props.netmask = 0xffffff00;
}
#ifdef PCAP_NETMASK_UNKNOWN
// Defined in libpcap >= 1.1.1
if ( props.netmask == PCAP_NETMASK_UNKNOWN )
props.netmask = PktSrc::NETMASK_UNKNOWN;
#endif
pd = pcap_create(props.path.c_str(), errbuf);
if ( ! pd )
{
PcapError("pcap_create");
return;
}
if ( pcap_set_snaplen(pd, BifConst::Pcap::snaplen) )
{
PcapError("pcap_set_snaplen");
return;
}
if ( pcap_set_promisc(pd, 1) )
{
PcapError("pcap_set_promisc");
return;
}
// We use the smallest time-out possible to return almost immediately
// if no packets are available. (We can't use set_nonblocking() as
// it's broken on FreeBSD: even when select() indicates that we can
// read something, we may get nothing if the store buffer hasn't
// filled up yet.)
//
// TODO: The comment about FreeBSD is pretty old and may not apply
// anymore these days.
if ( pcap_set_timeout(pd, 1) )
{
PcapError("pcap_set_timeout");
return;
}
if ( pcap_set_buffer_size(pd, BifConst::Pcap::bufsize * 1024 * 1024) )
{
PcapError("pcap_set_buffer_size");
return;
}
if ( pcap_activate(pd) )
{
PcapError("pcap_activate");
return;
}
#ifdef HAVE_LINUX
if ( pcap_setnonblock(pd, 1, errbuf) < 0 )
{
PcapError("pcap_setnonblock");
return;
}
#endif
#ifdef HAVE_PCAP_INT_H
Info(util::fmt("pcap bufsize = %d\n", ((struct pcap*)pd)->bufsize));
#endif
props.selectable_fd = pcap_get_selectable_fd(pd);
props.link_type = pcap_datalink(pd);
props.is_live = true;
Opened(props);
}
- 打开pcap文件
void PcapSource::OpenOffline()
{
char errbuf[PCAP_ERRBUF_SIZE];
pd = pcap_open_offline(props.path.c_str(), errbuf);
if (!pd)
{
Error(errbuf);
return;
}
props.selectable_fd = fileno(pcap_file(pd));
if (props.selectable_fd < 0)
InternalError("OS does not support selectable pcap fd");
props.link_type = pcap_datalink(pd);
props.is_live = false;
Opened(props);
}
PcapDumper
class PcapDumper : public PktDumper
{
public:
PcapDumper(const std::string& path, bool append);
~PcapDumper() override;
static PktDumper* Instantiate(const std::string& path, bool appen);
protected:
// PktDumper interface.
void Open() override;
void Close() override;
bool Dump(const Packet* pkt) override;
private:
Properties props;
bool append;
pcap_dumper_t* dumper;
pcap_t* pd;
};
构造
- init_run
if ( pcap_output_file ) //输出
{
const char* writefile = pcap_output_file->data();
pkt_dumper = iosource_mgr->OpenPktDumper(writefile, false);
assert(pkt_dumper);
if ( ! pkt_dumper->IsOpen() )
reporter->FatalError("problem opening dump file %s (%s)", writefile,
pkt_dumper->ErrorMsg());
if ( const auto& id = zeek::detail::global_scope()->Find("trace_output_file") )
id->SetVal(make_intrusive<StringVal>(writefile));
else
reporter->Error("trace_output_file not defined");
}
- OpenPktDumper
PktDumper* Manager::OpenPktDumper(const std::string& path, bool append)
{
std::pair<std::string, std::string> t = split_prefix(path);
std::string prefix = t.first;
std::string npath = t.second;
// Find the component providing packet dumpers of the requested prefix.
PktDumperComponent* component = nullptr;
std::list<PktDumperComponent*> all_components = plugin_mgr->Components<PktDumperComponent>();
for (const auto& c : all_components)
{
if (c->HandlesPrefix(prefix))
{
component = c;
break;
}
}
if (!component)
reporter->FatalError("type of packet dumper '%s' not recognized", prefix.c_str());
// Instantiate packet dumper.
//调用构造
PktDumper* pd = (*component->Factory())(npath, append);
assert(pd);
if (!pd->IsOpen() && pd->IsError())
// Set an error message if it didn't open successfully.
pd->Error("could not open");
DBG_LOG(DBG_PKTIO, "Created packer dumper of type %s for %s", component->Name().c_str(), npath.c_str());
pd->Init();
pkt_dumpers.push_back(pd);
return pd;
}
- 构造
iosource::PktDumper* PcapDumper::Instantiate(const std::string& path, bool append)
{
return new PcapDumper(path, append);
}
Init
- Init
void PktDumper::Init()
{
Open();
}
- Open
void PcapDumper::Open()
{
int linktype = -1;
pd = pcap_open_dead(DLT_EN10MB, BifConst::Pcap::snaplen);
if (!pd)
{
Error("error for pcap_open_dead");
return;
}
if (props.path.empty())
{
Error("no filename given");
return;
}
struct stat s;
int exists = 0;
if (append)
{
// See if output file already exists (and is non-empty).
exists = stat(props.path.c_str(), &s);
if (exists < 0 && errno != ENOENT)
{
Error(util::fmt("can't stat file %s: %s", props.path.c_str(), strerror(errno)));
return;
}
}
if (!append || exists < 0 || s.st_size == 0)
{
// Open new file.
dumper = pcap_dump_open(pd, props.path.c_str());
if (!dumper)
{
Error(pcap_geterr(pd));
return;
}
}
else
{
#ifdef HAVE_PCAP_DUMP_OPEN_APPEND
dumper = pcap_dump_open_append(pd, props.path.c_str());
#else
// Old file and we need to append, which, unfortunately,
// is not supported by libpcap. So, we have to hack a
// little bit, knowing that pcap_dumper_t is, in fact,
// a FILE ... :-(
dumper = (pcap_dumper_t*)fopen(props.path.c_str(), "a");
#endif
if (!dumper)
{
Error(util::fmt("can't open dump %s: %s", props.path.c_str(), strerror(errno)));
return;
}
}
props.open_time = run_state::network_time;
Opened(props);
}
Analyzer
Zeek的动态分析框架是将分析器树与每个连接相关联。这棵树可以包含任意数量的分析器在各种群体，并且在连接的整个生命周期内都可以进行修改。并且zeek提供了两种关键的能力：
- 独立于端口进行协议分析。通过一组与协议内容匹配的特征，zeek可以通过器payload找到正确的分析器。当特征匹配时会使用对应的分析器。
- 当分析器解析错误的协议时，可以关闭分析器，并且我们可以使用多个分析器。
所有分析器都派生自类Analyzer。我们将 分析器树与每个连接相关联，它反映了数据包分析期间的数据流，分析器根据哪些分析器执行其分析。每个数据包首先被传递到树的根节点，该根节点将其（可能转换的）输入传递给它的所有子节点。每个孩子依次将数据传递给其继任者。
根节点必须始终是TransportLayerAnalyzer类型。例如TCP、UDP和ICMP分析器。应用层分析器要么派生自TCP_ApplicationAnalyzer（对于TCP 协议），要么派生自通用Analyzer类（对于所有非TCP 协议）。
当连接开始时，初始分析器树由全局analyzer::Manager实例化。初始树始终包含相应的TransportLayerAnalyzer。对于TCP和UDP，它还分别包含PIA_TCP或PIA_UDP类的实例。PIA 负责在连接进行时检测协议。最重要的是，它们执行签名匹配。根据是否使用任何已知端口，初始树可能立即包含也可能不包含任何应用层分析器。
分析器可以支持两种输入方法之一（或两者）：分组方式或流方式。分析器可以通过一种方法（例如，分组方式）接受输入，并通过另一种方法（例如，流方式）将其传递给它的孩子。例如TCP_Analyzer将数据包重新组合成字节流，因此所有TCP_ApplicationAnalyzer只能看到流式输入。
Analyzer的接口
// 初始化analyzer
void Init()
// 清楚analyer
void Done()
//分组输入接口
// len 数据长度
// data 指向数据的指针
// orig 数据来自连接发起者为true
// seq 数据相关的序号，如果没有则为-1
// ip 如果有IP相关的数据包头，如果没有则为空
// caplen ip的长度？
void DeliverPacket(int len, const u_char* data, bool orig, uint64 seq, const IP_Hdr* ip, int caplen)
// 流式输入的接口
// len 数据长度
// data 指向数据的指针
// orig 数据来自连接发起者为true
void DeliverStream(int len, const u_char* data, bool orig)
// 取消seq的报文
void Undelivered(uint64 seq, int len, bool orig)
// 返回分析器当前使用的内存字节数。
unsigned int MemoryAllocation() const
// 返回分析器类的新实例
static Analyzer* InstantiateAnalyzer(Connection* conn)
// 如果分析器完全禁用并且不考虑任何连接，则返回 false。（通常情况下，如果没有为分析器定义事件处理程序，就会出现这种情况。）
static bool Available()
// 给定的端点是否已经传输完成
void EndpointEOF(bool is_orig)
// 每当端点进入TCP_CLOSED或TCP_RESET时调用。
void ConnectionFinished(int half_finished)
// 连接重置时调用
void ConnectionReset()
// 每当看到RST数据包时调用（有时调用 ConnectionReset会延迟）
void PacketWithRST()
Analyzer如果构建？
Analyzer如何调度，如何形成链式？
Connection
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-pPXGuU0z-1660489984252)(https://cdn.nlark.com/yuque/__puml/544ea3f957a363da4150f42434905c49.svg#lake_card_v2=eyJ0eXBlIjoicHVtbCIsImNvZGUiOiJAc3RhcnR1bWxcblxuY2xhc3MgT2JqIHtcblx0XG59XG5cblxuQGVuZHVtbCIsInVybCI6Imh0dHBzOi8vY2RuLm5sYXJrLmNvbS95dXF1ZS9fX3B1bWwvNTQ0ZWEzZjk1N2EzNjNkYTQxNTBmNDI0MzQ5MDVjNDkuc3ZnIiwiaWQiOiJRTTdFViIsIm1hcmdpbiI6eyJ0b3AiOnRydWUsImJvdHRvbSI6dHJ1ZX0sImNhcmQiOiJkaWFncmFtIn0=)]
启动
run_loop
void run_loop()
{
util::detail::set_processing_status("RUNNING", "run_loop");
iosource::Manager::ReadySources ready;
ready.reserve(iosource_mgr->TotalSize());
while (iosource_mgr->Size() || (BifConst::exit_only_after_terminate && !terminating))
{
time_updated = false;
iosource_mgr->FindReadySources(&ready);
#ifdef DEBUG
static int loop_counter = 0;
// If no source is ready, we log only every 100th cycle,
// starting with the first.
if (!ready.empty() || loop_counter++ % 100 == 0)
{
DBG_LOG(DBG_MAINLOOP, "realtime=%.6f ready_count=%zu", util::current_time(), ready.size());
if (!ready.empty())
loop_counter = 0;
}
#endif
current_iosrc = nullptr;
auto communication_enabled = broker_mgr->Active();
if (!ready.empty())
{
for (const auto& src : ready)
{
auto* iosrc = src.src;
DBG_LOG(DBG_MAINLOOP, "processing source %s", iosrc->Tag());
current_iosrc = iosrc;
if (iosrc->ImplementsProcessFd() && src.fd != -1)
iosrc->ProcessFd(src.fd, src.flags);
else
iosrc->Process();
}
}
else if ((have_pending_timers || communication_enabled || BifConst::exit_only_after_terminate) && !pseudo_realtime)
{
// Take advantage of the lull to get up to
// date on timers and events. Because we only
// have timers as sources, going to sleep here
// doesn't risk blocking on other inputs.
update_network_time(util::current_time());
expire_timers();
}
// Ensure that the time gets updated every pass if we're reading live.
// This is necessary for e.g. packet sources that don't have a selectable
// file descriptor. They'll always be ready on a very short timeout, but
// won't necessarily have a packet to process. In these case, sometimes
// the time won't get updated for a long time and timers don't function
// correctly.
if ((!time_updated && reading_live))
{
update_network_time(util::current_time());
expire_timers();
}
event_mgr.Drain();
processing_start_time = 0.0; // = "we're not processing now"
current_dispatched = 0;
current_iosrc = nullptr;
if (::signal_val == SIGTERM || ::signal_val == SIGINT)
// We received a signal while processing the
// current packet and its related events.
// Should we put the signal handling into an IOSource?
zeek_terminate_loop("received termination signal");
if (!reading_traces)
// Check whether we have timers scheduled for
// the future on which we need to wait.
have_pending_timers = zeek::detail::timer_mgr->Size() > 0;
if (pseudo_realtime && communication_enabled)
{
auto have_active_packet_source = false;
iosource::PktSrc* ps = iosource_mgr->GetPktSrc();
if (ps && ps->IsOpen())
have_active_packet_source = true;
if (!have_active_packet_source)
// Can turn off pseudo realtime now
pseudo_realtime = 0.0;
}
}
// Get the final statistics now, and not when finish_run() is
// called, since that might happen quite a bit in the future
// due to expiring pending timers, and we don't want to ding
// for any packets dropped beyond this point.
get_final_stats();
}
Process
void PktSrc::Process()
{
if (!IsOpen())
return;
if (!ExtractNextPacketInternal())
return;
run_state::detail::dispatch_packet(¤t_packet, this);
have_packet = false;
DoneWithPacket();
}
ExtractNextPacketInternal
bool PktSrc::ExtractNextPacketInternal()
{
if (have_packet)
return true;
have_packet = false;
// Don't return any packets if processing is suspended (except for the
// very first packet which we need to set up times).
if (run_state::is_processing_suspended() && run_state::detail::first_timestamp)
return false;
if (run_state::pseudo_realtime)
run_state::detail::current_wallclock = util::current_time(true);
if (ExtractNextPacket(¤t_packet))
{
if (current_packet.time < 0)
{
Weird("negative_packet_timestamp", ¤t_packet);
return false;
}
if (!run_state::detail::first_timestamp)
run_state::detail::first_timestamp = current_packet.time;
have_packet = true;
return true;
}
if (run_state::pseudo_realtime && !IsOpen())
{
if (broker_mgr->Active())
iosource_mgr->Terminate();
}
return false;
}
bool PcapSource::ExtractNextPacket(Packet* pkt)
{
if (!pd)
return false;
const u_char* data;
pcap_pkthdr* header;
int res = pcap_next_ex(pd, &header, &data);
switch (res)
{
case PCAP_ERROR_BREAK: // -2
// Exhausted pcap file, no more packets to read.
assert(!props.is_live);
Close();
return false;
case PCAP_ERROR: // -1
// Error occurred while reading the packet.
if (props.is_live)
reporter->Error("failed to read a packet from %s: %s", props.path.data(), pcap_geterr(pd));
else
reporter->FatalError("failed to read a packet from %s: %s", props.path.data(), pcap_geterr(pd));
return false;
case 0:
// Read from live interface timed out (ok).
return false;
case 1:
// Read a packet without problem.
// Although, some libpcaps may claim to have read a packet, but either did
// not really read a packet or at least provide no way to access its
// contents, so the following check for null-data helps handle those cases.
if (!data)
{
reporter->Weird("pcap_null_data_packet");
return false;
}
break;
default:
reporter->InternalError("unhandled pcap_next_ex return value: %d", res);
return false;
}
pkt->Init(props.link_type, &header->ts, header->caplen, header->len, data);
if (header->len == 0 || header->caplen == 0)
{
Weird("empty_pcap_header", pkt);
return false;
}
++stats.received;
stats.bytes_received += header->len;
// Some versions of libpcap (myricom) are somewhat broken and will return a duplicate
// packet if there are no more packets available. Namely, it returns the exact same
// packet structure (including the header) out of the library without reinitializing
// any of the values. If we set the header lengths to zero here, we can keep from
// processing it a second time.
header->len = 0;
header->caplen = 0;
return true;
}
dispatch_packet
void dispatch_packet(Packet* pkt, iosource::PktSrc* pkt_src)
{
double t = run_state::pseudo_realtime ? check_pseudo_time(pkt) : pkt->time;
if (!zeek_start_network_time)
{
zeek_start_network_time = t;
if (network_time_init)
event_mgr.Enqueue(network_time_init, Args{});
}
current_iosrc = pkt_src;
#pragma GCC diagnostic push
#pragma GCC diagnostic ignored "-Wdeprecated-declarations"
current_pktsrc = pkt_src;
#pragma GCC diagnostic pop
// network_time never goes back.
update_network_time(zeek::detail::timer_mgr->Time() < t ? t : zeek::detail::timer_mgr->Time());
processing_start_time = t;
expire_timers();
zeek::detail::SegmentProfiler* sp = nullptr;
if (load_sample)
{
static uint32_t load_freq = 0;
if (load_freq == 0)
load_freq = uint32_t(0xffffffff) / uint32_t(zeek::detail::load_sample_freq);
if (uint32_t(util::detail::random_number() & 0xffffffff) < load_freq)
{
// Drain the queued timer events so they're not
// charged against this sample.
event_mgr.Drain();
zeek::detail::sample_logger = new zeek::detail::SampleLogger();
sp = new zeek::detail::SegmentProfiler(zeek::detail::sample_logger, "load-samp");
}
}
//处理包
packet_mgr->ProcessPacket(pkt);
event_mgr.Drain();
if (sp)
{
delete sp;
delete zeek::detail::sample_logger;
zeek::detail::sample_logger = nullptr;
}
processing_start_time = 0.0; // = "we're not processing now"
current_dispatched = 0;
if (pseudo_realtime && !first_wallclock)
first_wallclock = util::current_time(true);
current_iosrc = nullptr;
#pragma GCC diagnostic push
#pragma GCC diagnostic ignored "-Wdeprecated-declarations"
current_pktsrc = nullptr;
#pragma GCC diagnostic pop
}
process_packet
void Manager::ProcessPacket(Packet* packet)
{
#ifdef DEBUG
static size_t counter = 0;
DBG_LOG(DBG_PACKET_ANALYSIS, "Analyzing packet %ld, ts=%.3f...", ++counter, packet->time);
#endif
zeek::detail::SegmentProfiler prof(detail::segment_logger, "dispatching-packet");
if (pkt_profiler)
pkt_profiler->ProfilePkt(zeek::run_state::processing_start_time, packet->cap_len);
++num_packets_processed;
bool dumped_packet = false;
if (packet->dump_packet || zeek::detail::record_all_packets)
{
DumpPacket(packet, packet->dump_size);
dumped_packet = true;
}
// Start packet analysis
root_analyzer->ForwardPacket(packet->cap_len, packet->data, packet, packet->link_type);
if (!packet->processed)
{
if (packet_not_processed)
event_mgr.Enqueue(packet_not_processed, Packet::ToVal(packet));
plugin_mgr->HookUnprocessedPacket(packet);
if (unprocessed_dumper)
unprocessed_dumper->Dump(packet);
total_not_processed++;
}
if (raw_packet)
event_mgr.Enqueue(raw_packet, packet->ToRawPktHdrVal());
// Check whether packet should be recorded based on session analysis
if (packet->dump_packet && !dumped_packet)
DumpPacket(packet, packet->dump_size);
}
ForwardPacket
bool Analyzer::ForwardPacket(size_t len, const uint8_t* data, Packet* packet) const
{
AnalyzerPtr inner_analyzer = nullptr;
for (const auto& child : analyzers_to_detect)
{
if (child->DetectProtocol(len, data, packet))
{
DBG_LOG(DBG_PACKET_ANALYSIS, "Protocol detection in %s succeeded, next layer analyzer is %s", GetAnalyzerName(),
child->GetAnalyzerName());
inner_analyzer = child;
break;
}
}
if (!inner_analyzer)
inner_analyzer = default_analyzer;
if (!inner_analyzer)
{
DBG_LOG(DBG_PACKET_ANALYSIS, "Analysis in %s stopped, no default analyzer available.", GetAnalyzerName());
if (report_unknown_protocols)
Weird("no_suitable_analyzer_found", packet);
return false;
}
return inner_analyzer->AnalyzePacket(len, data, packet);
}
EthernetAnalyzer::AnalyzePacket
bool EthernetAnalyzer::AnalyzePacket(size_t len, const uint8_t* data, Packet* packet)
{
// Make sure that we actually got an entire ethernet header before trying
// to pull bytes out of it.
if (16 >= len)
{
Weird("truncated_ethernet_frame", packet);
return false;
}
// Skip past Cisco FabricPath to encapsulated ethernet frame.
if (data[12] == 0x89 && data[13] == 0x03)
{
auto constexpr cfplen = 16;
if (cfplen + 14 >= len)
{
Weird("truncated_link_header_cfp", packet);
return false;
}
data += cfplen;
len -= cfplen;
}
// Get protocol being carried from the ethernet frame.
uint32_t protocol = (data[12] << 8) + data[13];
packet->eth_type = protocol;
packet->l2_dst = data;
packet->l2_src = data + 6;
// Ethernet II frames
if (protocol >= 1536)
return ForwardPacket(len - 14, data + 14, packet, protocol);
// Other ethernet frame types
if (protocol <= 1500)
{
if (16 >= len)
{
Weird("truncated_ethernet_frame", packet);
return false;
}
// Let specialized analyzers take over for non Ethernet II frames.
// Note that pdata remains at the start of the ethernet frame.
AnalyzerPtr eth_analyzer = nullptr;
if (data[14] == 0xAA && data[15] == 0xAA)
// IEEE 802.2 SNAP
eth_analyzer = SNAPAnalyzer;
else if (data[14] == 0xFF && data[15] == 0xFF)
// Novell raw IEEE 802.3
eth_analyzer = NovellRawAnalyzer;
else
// IEEE 802.2 LLC
eth_analyzer = LLCAnalyzer;
if (eth_analyzer)
return eth_analyzer->AnalyzePacket(len, data, packet);
return true;
}
// Undefined (1500 < EtherType < 1536)
Weird("undefined_ether_type", packet);
return false;
}
IPAnalyzer::AnalyzePacket
bool IPAnalyzer::AnalyzePacket(size_t len, const uint8_t* data, Packet* packet)
{
// Check to make sure we have enough data left for an IP header to be here. Note we only
// check ipv4 here. We'll check ipv6 later once we determine we have an ipv6 header.
if (len < sizeof(struct ip))
{
Weird("truncated_IP", packet);
return false;
}
int32_t hdr_size = static_cast<int32_t>(data - packet->data);
// Cast the current data pointer to an IP header pointer so we can use it to get some
// data about the header.
auto ip = (const struct ip*)data;
uint32_t protocol = ip->ip_v;
// This is a unique pointer because of the mass of early returns from this method.
if (protocol == 4)
{
packet->ip_hdr = std::make_shared<IP_Hdr>(ip, false);
packet->l3_proto = L3_IPV4;
}
else if (protocol == 6)
{
if (len < sizeof(struct ip6_hdr))
{
Weird("truncated_IP", packet);
return false;
}
packet->ip_hdr = std::make_shared<IP_Hdr>((const struct ip6_hdr*)data, false, len);
packet->l3_proto = L3_IPV6;
}
else
{
Weird("unknown_ip_version", packet);
return false;
}
// If there's an encapsulation stack in this packet, meaning this packet is part of a chain
// of tunnels, make sure to store the IP header in the last flow in the stack so it can be
// used by previous analyzers as we return up the chain.
if (packet->encap)
{
if (auto* ec = packet->encap->Last())
ec->ip_hdr = packet->ip_hdr;
}
const struct ip* ip4 = packet->ip_hdr->IP4_Hdr();
// TotalLen() returns the full length of the IP portion of the packet, including
// the IP header and payload.
uint32_t total_len = packet->ip_hdr->TotalLen();
if (total_len == 0)
{
// TCP segmentation offloading can zero out the ip_len field.
Weird("ip_hdr_len_zero", packet);
if (detail::ignore_checksums)
// Cope with the zero'd out ip_len field by using the caplen.
total_len = packet->cap_len - hdr_size;
else
// If this is caused by segmentation offloading, the checksum will
// also be incorrect. If checksum validation is enabled - jus tbail here.
return false;
}
if (packet->len < total_len + hdr_size)
{
Weird("truncated_IPv6", packet);
return false;
}
// For both of these it is safe to pass ip_hdr because the presence
// is guaranteed for the functions that pass data to us.
uint16_t ip_hdr_len = packet->ip_hdr->HdrLen();
if (ip_hdr_len > total_len)
{
Weird("invalid_IP_header_size", packet);
return false;
}
if (ip_hdr_len > len)
{
Weird("internally_truncated_header", packet);
return false;
}
if (packet->ip_hdr->IP4_Hdr())
{
if (ip_hdr_len < sizeof(struct ip))
{
Weird("IPv4_min_header_size", packet);
return false;
}
}
else
{
if (ip_hdr_len < sizeof(struct ip6_hdr))
{
Weird("IPv6_min_header_size", packet);
return false;
}
}
// Ignore if packet matches packet filter.
detail::PacketFilter* packet_filter = packet_mgr->GetPacketFilter(false);
if (packet_filter && packet_filter->Match(packet->ip_hdr, total_len, len))
return false;
if (!packet->l2_checksummed && !detail::ignore_checksums && ip4
&& !IPBasedAnalyzer::GetIgnoreChecksumsNets()->Contains(packet->ip_hdr->IPHeaderSrcAddr())
&& detail::in_cksum(reinterpret_cast<const uint8_t*>(ip4), ip_hdr_len) != 0xffff)
{
Weird("bad_IP_checksum", packet);
return false;
}
if (discarder && discarder->NextPacket(packet->ip_hdr, total_len, len))
return false;
detail::FragReassembler* f = nullptr;
if (packet->ip_hdr->IsFragment())
{
packet->dump_packet = true; // always record fragments
if (len < total_len)
{
Weird("incompletely_captured_fragment", packet);
// Don't try to reassemble, that's doomed.
// Discard all except the first fragment (which
// is useful in analyzing header-only traces)
if (packet->ip_hdr->FragOffset() != 0)
return false;
}
else
{
f = detail::fragment_mgr->NextFragment(run_state::processing_start_time, packet->ip_hdr, packet->data + hdr_size);
std::shared_ptr<IP_Hdr> ih = f->ReassembledPkt();
if (!ih)
// It didn't reassemble into anything yet.
return true;
ip4 = ih->IP4_Hdr();
// Switch the stored ip header over to the one from the
// fragmented packet.
packet->ip_hdr = std::move(ih);
len = total_len = packet->ip_hdr->TotalLen();
ip_hdr_len = packet->ip_hdr->HdrLen();
packet->cap_len = total_len + hdr_size;
if (ip_hdr_len > total_len)
{
Weird("invalid_IP_header_size", packet);
return false;
}
}
}
detail::FragReassemblerTracker frt(f);
// We stop building the chain when seeing IPPROTO_ESP so if it's
// there, it's always the last.
if (packet->ip_hdr->LastHeader() == IPPROTO_ESP)
{
packet->dump_packet = true;
if (esp_packet)
event_mgr.Enqueue(esp_packet, packet->ip_hdr->ToPktHdrVal());
// Can't do more since upper-layer payloads are going to be encrypted.
return true;
}
// We stop building the chain when seeing IPPROTO_MOBILITY so it's always
// last if present.
if (packet->ip_hdr->LastHeader() == IPPROTO_MOBILITY)
{
packet->dump_packet = true;
if (!detail::ignore_checksums && mobility_header_checksum(packet->ip_hdr.get()) != 0xffff)
{
Weird("bad_MH_checksum", packet);
return false;
}
if (mobile_ipv6_message)
event_mgr.Enqueue(mobile_ipv6_message, packet->ip_hdr->ToPktHdrVal());
if (packet->ip_hdr->NextProto() != IPPROTO_NONE)
Weird("mobility_piggyback", packet);
return true;
}
// Set the data pointer to match the payload from the IP header. This makes sure that it's also
// pointing at the reassembled data for a fragmented packet.
data = packet->ip_hdr->Payload();
len -= ip_hdr_len;
// Session analysis assumes that the header size stored in the packet does not include the IP
// header size. There are two reasons for this: 1) Packet::ToRawPktHdrVal() wants to look at the
// IP header for reporting, and 2) The VXLAN analyzer uses the header position to create the
// next packet in the tunnel chain. Once the TCP/UDP work is done and the VXLAN analyzer can
// move into packet analysis, this can change, but for now we leave it as it is.
bool return_val = true;
int proto = packet->ip_hdr->NextProto();
packet->proto = proto;
// Double check the lengths one more time before forwarding this on.
if (total_len < packet->ip_hdr->HdrLen())
{
Weird("bogus_IP_header_lengths", packet);
return false;
}
switch (proto)
{
case IPPROTO_NONE:
// If the packet is encapsulated in Teredo, then it was a bubble and
// the Teredo analyzer may have raised an event for that, else we're
// not sure the reason for the No Next header in the packet.
if (!(packet->encap && packet->encap->LastType() == BifEnum::Tunnel::TEREDO))
{
Weird("ipv6_no_next", packet);
return_val = false;
}
break;
default:
packet->proto = proto;
// For everything else, pass it on to another analyzer. If there's no one to handle
// that, it'll report a Weird.
return_val = ForwardPacket(len, data, packet, proto);
break;
}
if (f)
f->DeleteTimer();
return return_val;
}
IPBasedAnalyzer::AnalyzePacket
bool IPBasedAnalyzer::AnalyzePacket(size_t len, const uint8_t* data, Packet* pkt)
{
ConnTuple tuple;
if (!BuildConnTuple(len, data, pkt, tuple))
return false;
const std::shared_ptr<IP_Hdr>& ip_hdr = pkt->ip_hdr;
detail::ConnKey key(tuple);
Connection* conn = session_mgr->FindConnection(key);
if (!conn)
{
conn = NewConn(&tuple, key, pkt);
if (conn)
session_mgr->Insert(conn, false);
}
else
{
if (conn->IsReuse(run_state::processing_start_time, ip_hdr->Payload()))
{
conn->Event(connection_reused, nullptr);
session_mgr->Remove(conn);
conn = NewConn(&tuple, key, pkt);
if (conn)
session_mgr->Insert(conn, false);
}
else
{
conn->CheckEncapsulation(pkt->encap);
}
}
if (!conn)
return false;
// If we successfuly made a connection for this packet that means it'll eventually
// get logged, which means we can mark this packet as having been processed.
pkt->processed = true;
bool is_orig = (tuple.src_addr == conn->OrigAddr()) && (tuple.src_port == conn->OrigPort());
pkt->is_orig = is_orig;
conn->CheckFlowLabel(is_orig, ip_hdr->FlowLabel());
zeek::ValPtr pkt_hdr_val;
if (ipv6_ext_headers && ip_hdr->NumHeaders() > 1)
{
pkt_hdr_val = ip_hdr->ToPktHdrVal();
conn->EnqueueEvent(ipv6_ext_headers, nullptr, conn->GetVal(), pkt_hdr_val);
}
if (new_packet)
conn->EnqueueEvent(new_packet, nullptr, conn->GetVal(), pkt_hdr_val ? std::move(pkt_hdr_val) : ip_hdr->ToPktHdrVal());
conn->SetRecordPackets(true);
conn->SetRecordContents(true);
const u_char* payload = pkt->ip_hdr->Payload();
run_state::current_timestamp = run_state::processing_start_time;
run_state::current_pkt = pkt;
// TODO: Does this actually mean anything?
if (conn->GetSessionAdapter()->Skipping())
return true;
DeliverPacket(conn, run_state::processing_start_time, is_orig, len, pkt);
run_state::current_timestamp = 0;
run_state::current_pkt = nullptr;
// If the packet is reassembled, disable packet dumping because the
// pointer math to dump the data wouldn't work.
if (pkt->ip_hdr->Reassembled())
pkt->dump_packet = false;
else if (conn->RecordPackets())
{
pkt->dump_packet = true;
// If we don't want the content, set the dump size to include just
// the header.
if (!conn->RecordContents())
pkt->dump_size = payload - pkt->data;
}
return true;
}
IPBasedAnalyzer::NewConn
zeek::Connection* IPBasedAnalyzer::NewConn(const ConnTuple* id, const detail::ConnKey& key, const Packet* pkt)
{
int src_h = ntohs(id->src_port);
int dst_h = ntohs(id->dst_port);
bool flip = false;
if (!WantConnection(src_h, dst_h, pkt->ip_hdr->Payload(), flip))
return nullptr;
Connection* conn = new Connection(key, run_state::processing_start_time, id, pkt->ip_hdr->FlowLabel(), pkt);
conn->SetTransport(transport);
if (flip)
conn->FlipRoles();
BuildSessionAnalyzerTree(conn);
if (new_connection)
conn->Event(new_connection, nullptr);
return conn;
}
IPBasedAnalyzer::BuildSessionAnalyzerTree
void IPBasedAnalyzer::BuildSessionAnalyzerTree(Connection* conn)
{
SessionAdapter* root = MakeSessionAdapter(conn);
analyzer::pia::PIA* pia = MakePIA(conn);
bool scheduled = analyzer_mgr->ApplyScheduledAnalyzers(conn, false, root);
// Hmm... Do we want *just* the expected analyzer, or all
// other potential analyzers as well? For now we only take
// the scheduled ones.
if (!scheduled)
{ // Let's see if it's a port we know.
if (!analyzers_by_port.empty() && !zeek::detail::dpd_ignore_ports)
{
int resp_port = ntohs(conn->RespPort());
std::set<zeek::Tag>* ports = LookupPort(resp_port, false);
if (ports)
{
for (const auto& port : *ports)
{
analyzer::Analyzer* analyzer = analyzer_mgr->InstantiateAnalyzer(port, conn);
if (!analyzer)
continue;
root->AddChildAnalyzer(analyzer, false);
DBG_ANALYZER_ARGS(conn, "activated %s analyzer due to port %d", analyzer_mgr->GetComponentName(port).c_str(),
resp_port);
}
}
}
}
root->AddExtraAnalyzers(conn);
if (pia)
root->AddChildAnalyzer(pia->AsAnalyzer());
conn->SetSessionAdapter(root, pia);
root->Init();
root->InitChildren();
PLUGIN_HOOK_VOID(HOOK_SETUP_ANALYZER_TREE, HookSetupAnalyzerTree(conn));
}
Manager::InstantiateAnalyzer
Analyzer* Manager::InstantiateAnalyzer(const char* name, Connection* conn)
{
zeek::Tag tag = GetComponentTag(name);
return tag ? InstantiateAnalyzer(tag, conn) : nullptr;
}
Analyzer* Manager::InstantiateAnalyzer(const zeek::Tag& tag, Connection* conn)
{
Component* c = Lookup(tag);
if (!c)
{
reporter->InternalWarning("request to instantiate unknown analyzer");
return nullptr;
}
if (!c->Enabled())
return nullptr;
if (!c->Factory())
{
reporter->InternalWarning("analyzer %s cannot be instantiated dynamically", GetComponentName(tag).c_str());
return nullptr;
}
Analyzer* a = c->Factory()(conn);
if (!a)
{
reporter->InternalWarning("analyzer instantiation failed");
return nullptr;
}
a->SetAnalyzerTag(tag);
return a;
}
HTTP
zeek::analyzer::http::HTTP_Analyzer::HTTP_Analyzer HTTP.cc:816
zeek::analyzer::http::HTTP_Analyzer::Instantiate HTTP.h:216
zeek::analyzer::Manager::InstantiateAnalyzer Manager.cc:315
zeek::packet_analysis::IP::IPBasedAnalyzer::BuildSessionAnalyzerTree IPBasedAnalyzer.cc:206
zeek::packet_analysis::IP::IPBasedAnalyzer::NewConn IPBasedAnalyzer.cc:177
zeek::packet_analysis::IP::IPBasedAnalyzer::AnalyzePacket IPBasedAnalyzer.cc:42
zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
zeek::packet_analysis::IP::IPAnalyzer::AnalyzePacket IP.cc:276
zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
zeek::packet_analysis::Ethernet::EthernetAnalyzer::AnalyzePacket Ethernet.cc:54
zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
zeek::packet_analysis::Manager::ProcessPacket Manager.cc:112
zeek::run_state::detail::dispatch_packet RunState.cc:259
zeek::iosource::PktSrc::Process PktSrc.cc:154
zeek::run_state::detail::run_loop RunState.cc:322
main main.cc:59
__libc_start_main 0x00007ffff5e62083
_start 0x000055555619e1be
done
zeek::analyzer::http::HTTP_Analyzer::Done HTTP.cc:848
zeek::analyzer::Analyzer::Done Analyzer.cc:198
zeek::packet_analysis::TCP::TCPSessionAdapter::Done TCPSessionAdapter.cc:66
zeek::Connection::Done Conn.cc:143
zeek::session::Manager::Remove Manager.cc:128
zeek::packet_analysis::IP::IPBasedAnalyzer::AnalyzePacket IPBasedAnalyzer.cc:52
zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
zeek::packet_analysis::IP::IPAnalyzer::AnalyzePacket IP.cc:276
zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
zeek::packet_analysis::Ethernet::EthernetAnalyzer::AnalyzePacket Ethernet.cc:54
zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
zeek::packet_analysis::Manager::ProcessPacket Manager.cc:112
zeek::run_state::detail::dispatch_packet RunState.cc:259
zeek::iosource::PktSrc::Process PktSrc.cc:154
zeek::run_state::detail::run_loop RunState.cc:322
main main.cc:59
__libc_start_main 0x00007ffff5e62083
_start 0x000055555619e1be
undeliverd
[zeek] zeek::analyzer::http::HTTP_Analyzer::Undelivered HTTP.cc:1059
[zeek] zeek::analyzer::SupportAnalyzer::ForwardUndelivered Analyzer.cc:913
[zeek] zeek::analyzer::tcp::ContentLine_Analyzer::Undelivered ContentLine.cc:117
[zeek] zeek::analyzer::Analyzer::NextUndelivered Analyzer.cc:272
[zeek] zeek::analyzer::Analyzer::NextUndelivered Analyzer.cc:266
[zeek] zeek::analyzer::Analyzer::ForwardUndelivered Analyzer.cc:355
[zeek] zeek::analyzer::tcp::TCP_Reassembler::Gap TCP_Reassembler.cc:153
[zeek] zeek::analyzer::tcp::TCP_Reassembler::Undelivered TCP_Reassembler.cc:250
[zeek] zeek::DataBlockList::Trim Reassem.cc:219
[zeek] zeek::Reassembler::TrimToSeq Reassem.cc:354
[zeek] zeek::analyzer::tcp::TCP_Reassembler::AckReceived TCP_Reassembler.cc:527
[zeek] zeek::analyzer::tcp::TCP_Endpoint::AckReceived TCP_Endpoint.cc:243
[zeek] zeek::packet_analysis::TCP::TCPSessionAdapter::Process TCPSessionAdapter.cc:668
[zeek] zeek::packet_analysis::TCP::TCPAnalyzer::DeliverPacket TCP.cc:121
[zeek] zeek::packet_analysis::IP::IPBasedAnalyzer::AnalyzePacket IPBasedAnalyzer.cc:99
[zeek] zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
[zeek] zeek::packet_analysis::IP::IPAnalyzer::AnalyzePacket IP.cc:276
[zeek] zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
[zeek] zeek::packet_analysis::Ethernet::EthernetAnalyzer::AnalyzePacket Ethernet.cc:54
[zeek] zeek::packet_analysis::Analyzer::ForwardPacket Analyzer.cc:113
[zeek] zeek::packet_analysis::Manager::ProcessPacket Manager.cc:112
[zeek] zeek::run_state::detail::dispatch_packet RunState.cc:259
[zeek] zeek::iosource::PktSrc::Process PktSrc.cc:154
[zeek] zeek::run_state::detail::run_loop RunState.cc:321
[zeek] main main.cc:59
[libc.so.6] __libc_start_main 0x00007ffff5a1b083
[zeek] _start 0x00005555561bc07e
RegisterComponet
[zeek] zeek::plugin::ComponentManager<zeek::packet_analysis::Component>::RegisterComponent ComponentManager.h:244
[zeek] zeek::packet_analysis::Component::Initialize Component.cc:21
[zeek] zeek::plugin::Plugin::InitializeComponents Plugin.cc:450
[zeek] zeek::plugin::Manager::InitPreScript Manager.cc:472
[zeek] zeek::detail::setup zeek-setup.cc:699
[zeek] main main.cc:13
[libc.so.6] __libc_start_main 0x00007ffff5a1c083
[zeek] _start 0x00005555561bc07e
版权声明：本文内容由互联网用户自发贡献，该文观点仅代表作者本人。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容， 请发送邮件至 举报，一经查实，本站将立刻删除。
文章由极客之音整理，本文链接：https://www.bmabk.com/index.php/post/137618.html
