Flutter架构设计MVVM之flutter_riverpod方案(Notifier+NotifierProvider)

前文Flutter架构设计MVVM之flutter_riverpod方案中讲到MVVM架构设计，我们使用的是ChangeNotifier+ChangeNotifierProvider组合，其实它们在flutter_riverpod 3.0.0版本中即将被移除；那Riverpod提供了哪些类型提供者呢？

Riverpod共提供了多种不同类型的提供者，都适用于不同的场景：

Provider
StateProvider:@Deprecated(‘Will be removed in 3.0.0’
StateNotifierProvider：@Deprecated(‘Will be removed in 3.0.0’)
FutureProvider
StreamProvider
ChangeNotifierProvider：@Deprecated(‘Will be removed in 3.0.0’)
NotifierProvider:@Deprecated(‘Will be removed in 3.0.0’)
AsyncNotifierProvider

我们此次选用Notifier与NotifierProvider，大家体会下用法，注意变化的部分。

目录结构如下

user_model
–model
—–user_model.dart
–view
—–user_model_page.dart
–view_models
—–user_view_model.dart

1.Model

user_model.dart

// ignore_for_file: public_member_api_docs, sort_constructors_first
import 'dart:convert';

class UserModel {
  String name;
  int age;

  UserModel(
      this.name,
      this.age,
      );
}

2.ViewModel

user_view_model.dart

class UserViewModel extends Notifier<UserModel> {

  // ignore: empty_constructor_bodies
  void updateName(String newName) {
    state = state.copyWith(name:newName);
  }

  void updateAge(int newAge) {
    state = state.copyWith(age:newAge);
  }

  @override
  UserModel build() {
    return UserModel('', 0);
  }
}
//观察UserViewModel数据变化
final userViewModelProvider = NotifierProvider<UserViewModel,UserModel>( UserViewModel.new);

3.View

user_model_page.dart

我们扩展的是ConsumerWidget页面视图，在build方法中，通过ref.watch(userViewModelProvider)监控userViewModel数据变化。

import 'package:base_demo/pages/mine/user_model/view_models/user_view_model.dart';
import 'package:flutter/material.dart';
import 'package:flutter_riverpod/flutter_riverpod.dart';

class UserModelPage extends ConsumerWidget {
  const UserModelPage({super.key});

  @override
  Widget build(BuildContext context, WidgetRef ref) {
    final userViewModel = ref.watch(userViewModelProvider);

    return Scaffold(
      appBar: AppBar(
        title: const Text(''),
      ),
      body: Column(
        mainAxisAlignment: MainAxisAlignment.start,
        children: [
          Text('viewModel:${userViewModel}'),
          const SizedBox(
            height: 20,
          ),
          ElevatedButton(
              onPressed: () {
                //ref.read(userViewModelProvider).updateName('kk');
                ref.read(userViewModelProvider.notifier).updateName('kksnow');
              },
              child: const Text('更新姓名')),
          const SizedBox(
            height: 20,
          ),
          ElevatedButton(
              onPressed: () {
                //ref.read(userViewModelProvider).updateAge(userViewModel.userModel.age + 1);
                //userViewModel.updateAge(1+ userViewModel.userModel.age);
                ref.read(userViewModelProvider.notifier).updateAge(userViewModel.age + 1);
              },
              child: const Text('更新年龄')),
          const SizedBox(
            height: 20,
          ),
        ],
      ),
    );
  }
}

4.ProviderScope创建和管理Provider 的上下文

main.dart

我们要确保使用 package:riverpod 中的Provider类， ProviderScope 提供了创建和管理 Provider 的上下文，这些 Provider 用于管理状态和数据因flutter_riverpo库d与provider库都提供Provider类，我们对flutter_riverpo库重命名。

import 'package:base_demo/common/hive_manage.dart';
import 'package:base_demo/common/logger.dart';
import 'package:base_demo/common/theme_manager.dart';
import 'package:base_demo/pages/main/main_page.dart';
import 'package:base_demo/widgets/provider_widget.dart';
import 'package:base_demo/routes/router.dart';
import 'package:flutter/material.dart';
import 'package:flutter_riverpod/flutter_riverpod.dart' as flutter_riverpod ;
import 'package:fluttertoast/fluttertoast.dart';
import 'package:flutter_native_splash/flutter_native_splash.dart';
import 'package:provider/provider.dart';

void main() async {
  XLogger.getLogger().d("main init");
  WidgetsBinding widgetsBinding = WidgetsFlutterBinding.ensureInitialized();
  FlutterNativeSplash.preserve(widgetsBinding: widgetsBinding);
  FlutterNativeSplash.remove();

  await HiveManage.init();

  runApp(
    MultiProvider(
      providers: [
        ChangeNotifierProvider(create: (context) => CounterModel()),
        ChangeNotifierProvider(create: (context) => ThemeManager()),
      ],
      child: const MyApp(),
    ),
  );
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    final themeManager = Provider.of<ThemeManager>(context);
    //ProviderScope 提供了创建和管理 Provider 的上下文，这些 Provider 用于管理状态和数据
    return flutter_riverpod.ProviderScope(
        child: MaterialApp(
          title: 'Flutter Base Demo',
          theme: themeManager.theme,
          home: const MainPage(title: "Main page"),
          initialRoute: '/',
          onGenerateRoute: XRouter.generateRoute,
          builder: FToastBuilder(),
        ));
  }
}

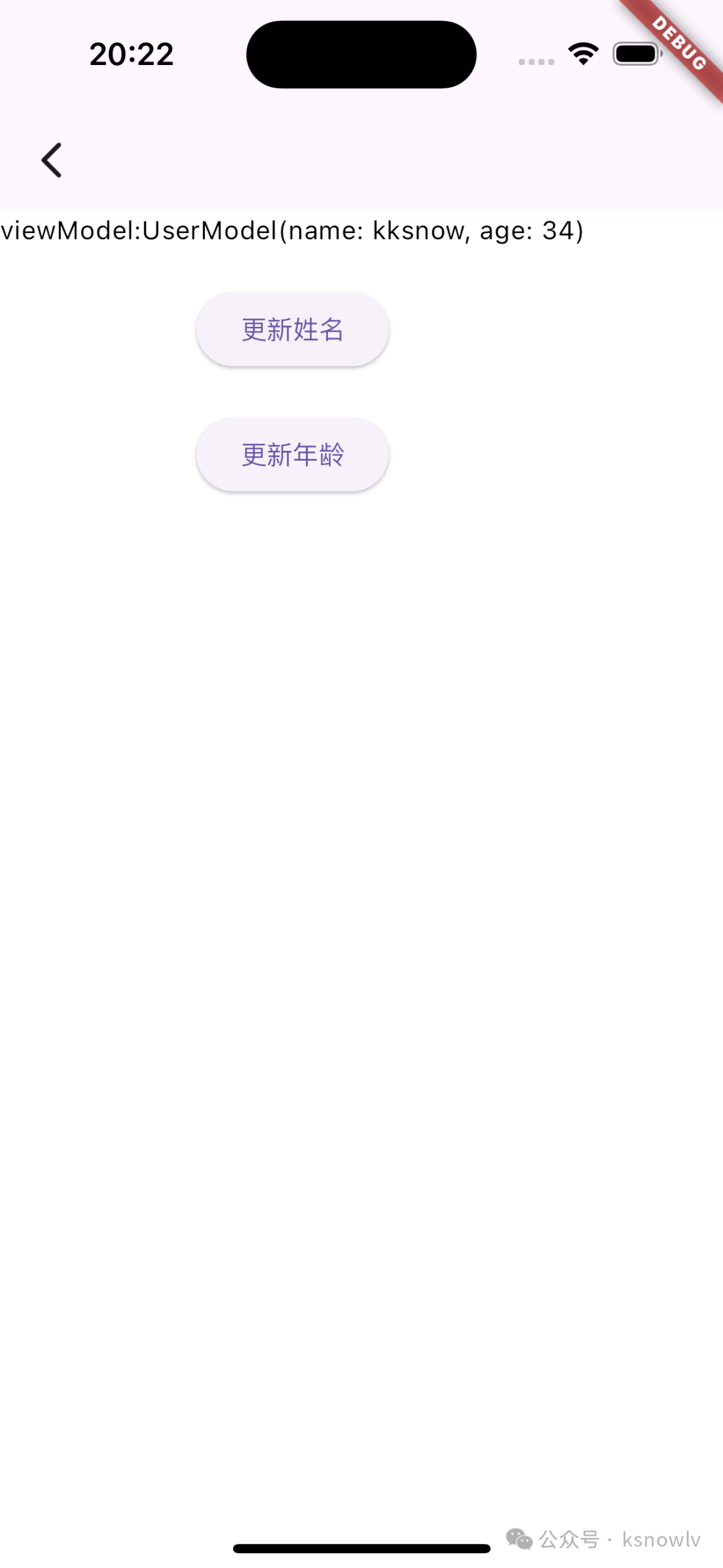

5.效果

6.分析与小结

调整

实际上只有user_view_model.dart与user_model_page.dart略微有所调整，其实变化不大。
为什么StateProvider/StateNotifierProvider/ChangeNotifierProvider/NotifierProvider将要过期在3.0.0被移除呢？可以思考下，后面再作演示。
